BROADBAND_RF_AMPLIFIER

Published:2009/6/17 23:19:00 Author:May | From:SeekIC

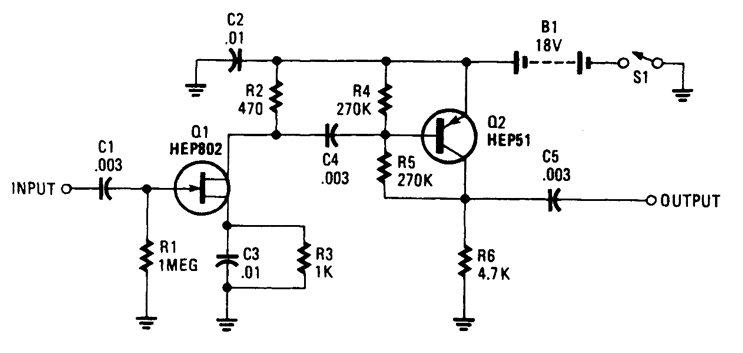

The use of a FET gives this amplifier a high input impedance. The bandwidth should be ade-quate for LW through HF use (dc-30 MHz), as an active antenna preamplifier.
