TMS3450NL Digital Clock Integrated Circuit Diagram

Published:2011/7/3 1:35:00 Author:Vicky | Keyword: Digital Clock Integrated Circuit | From:SeekIC

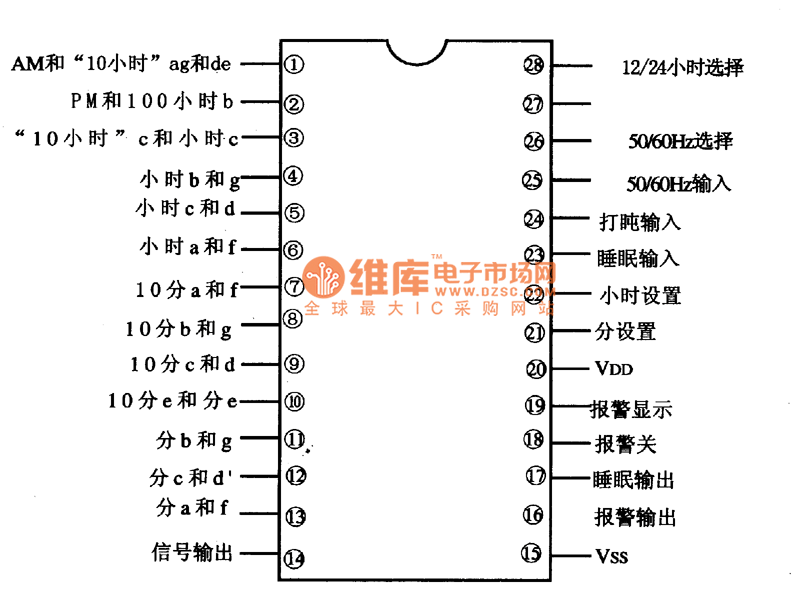

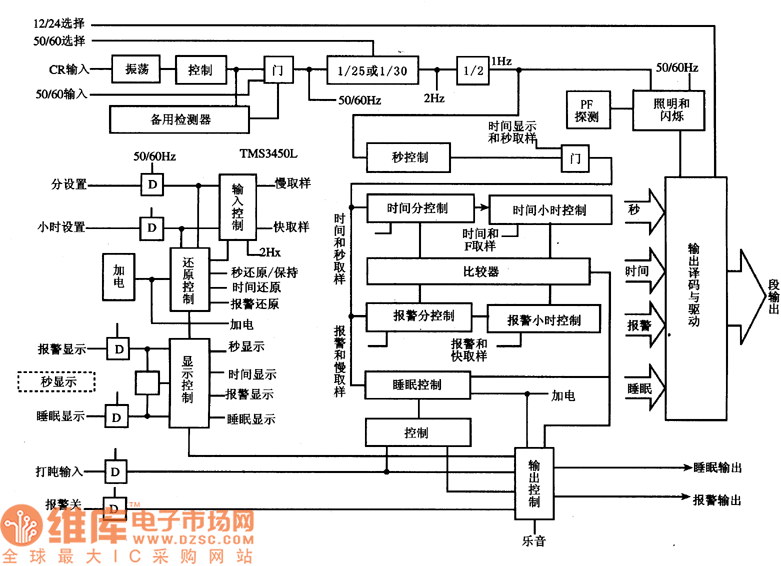

TMS3450NLis digital clock integrated circuit produced by Toshiba Corporation. It is widely used in various kinds of digital clock and auto clock circuit. 1 internal block circuit diagram and pin funtion Internal block circuit diagram of TMS3450NL integrated circuit and the pin function are all shown in the above picture. Internal block circuit diagram of IC TMS345ONL Typical applied circuit of IC TMS345ONL
