TMP88CM38N-Single chip microcomputer integrated circuit diagram

Published:2011/7/10 4:57:00 Author:leo | Keyword: Single chip, microcomputer | From:SeekIC

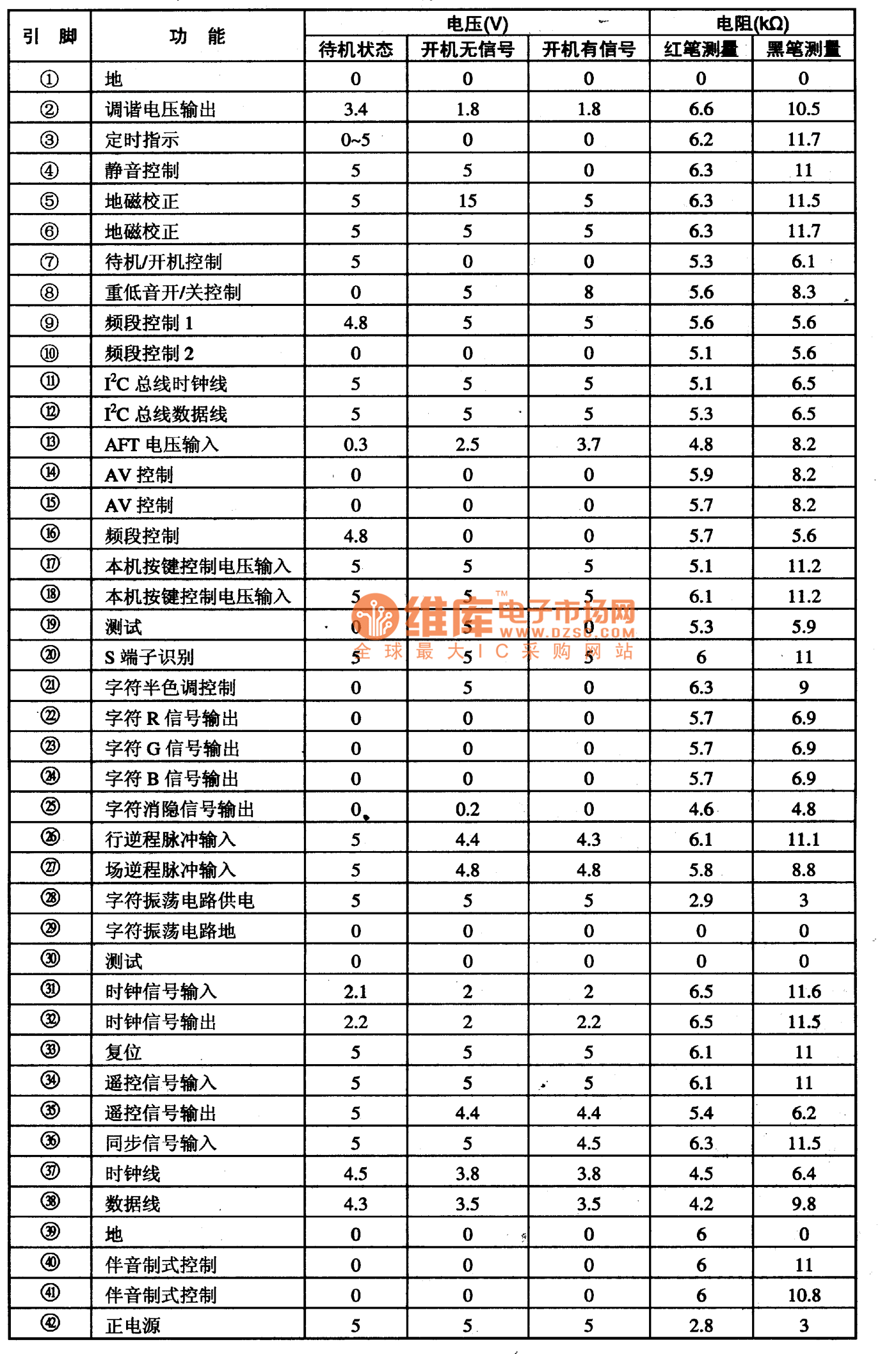

TMP88CM38N is a type of single chip microcomputer control integrated circuit produced by Toshiba which is widely used in Changhong CN-15 color television.1.Function features:TMP88CM38N consists of UPS, I(2) C Bus control circuit, key scanning code circuit, character display circuit, AV control circuit, frequency band control circuit, degauss control circuit, standby/start control circuit, mute control circuit, S port recognizing circuit, accompanying sound control circuit, clock oscillator circuit, character display clock circuit and other related circuit. 2.Pin functions and related data:It uses 42 pin dual line package and all information is shown in the picture.
