TEA2014-Width band video converting switch integrated circuit

Published:2011/7/10 18:58:00 Author:leo | Keyword: Video converting, resistance conversion | From:SeekIC

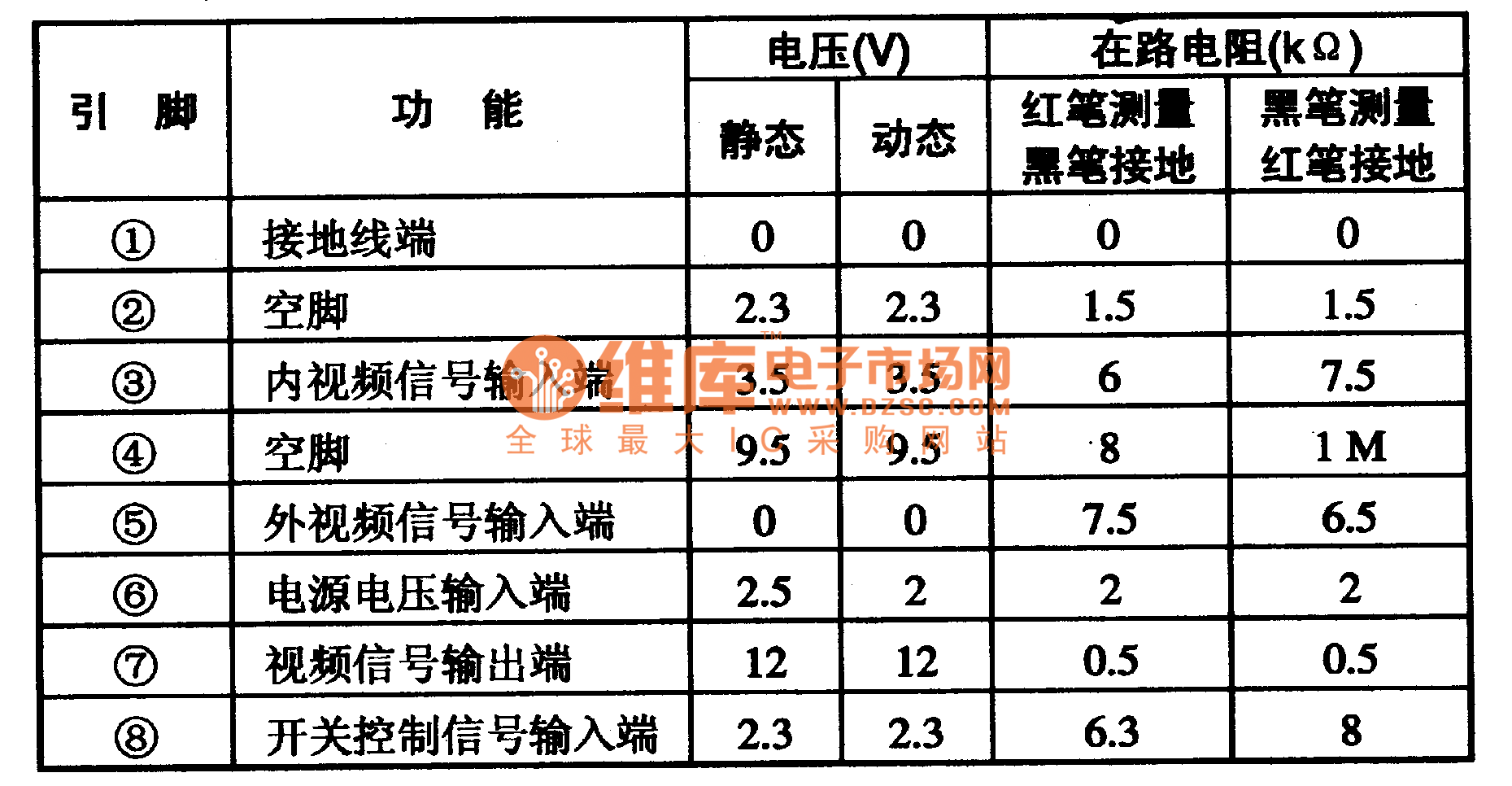

TEA2014 is width band video converting switch which is widely used in television circuit to convert the video signal. 1.Function features:TEA2014 has the features of signal voltage gain, resistance conversion, input and output short circuit protection, high definition, low power consumption and others. 2.Pin functions and data:TEA2014 uses 8 pin package and its pin functions as well as the related information are shown in the picture 1-1.
