TA8256BH audio power amplifier integrated circuit

Published:2011/7/6 6:06:00 Author:chopper | Keyword: audio power amplifier, integrated circuit | From:SeekIC

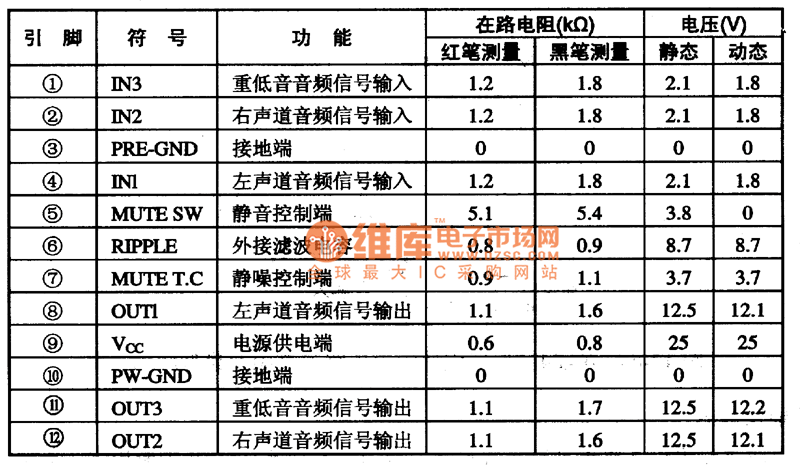

TA8356BH is a new audio power amplifier integrated circuitproduced by Company Toshiba,and it is applied to audio equipment, the multimedia sound,TV acoustics and so on.1.Function characteristics 　　TA8256BH integrated circuits contains three-way audio power amplifier circuit, mute control circuit, and other auxiliary functions circuit. 2 function and data of pins 　　TA8256BH IC adopts 12-pinned single in-line package,and it is used in large-screen TV of Haier Body Strong 34F9BT-TD series, its function and data of pins of the IC are listed in Chart 1.
