TA7508P karaoke reverberation audio amplifition integrated cirucit

Published:2011/6/17 6:30:00 Author:chopper | Keyword: karaoke, reverberation audio, amplifition, integrated cirucit | From:SeekIC

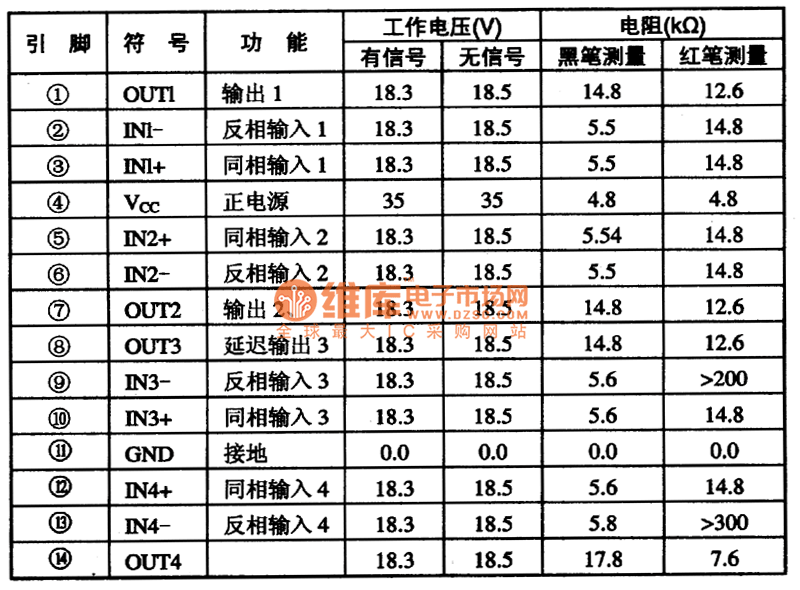

TA7508P is a audio amplifition integrated circuit produced by Company TOSHIBA,and it is used as a reverberant acoustics signal generated by amplifition and delay on Konka BT5001 RPTV. TA7508 is one model of the TA7508P integrated circuits whose power is greater than TA7508 and it adopts 35V power supply,while TA7508 adopts 12V power supply.The functions of pins of the two are the same.TA7508 integrated circuit is applied to Konka BT5001 RPTV.Its function and data of integrated circuit is shown as chart 1.
