TA7376P dual track power amplification integrated circuit

Published:2011/6/16 1:07:00 Author:chopper | Keyword: dual track, power amplification, integrated circuit | From:SeekIC

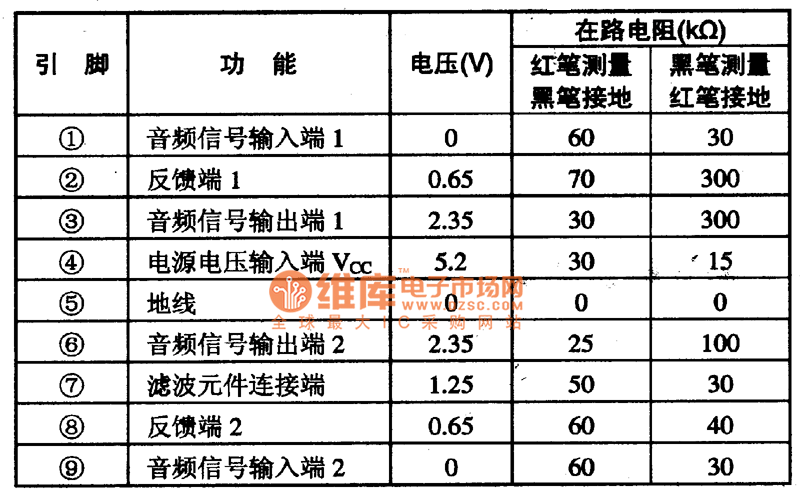

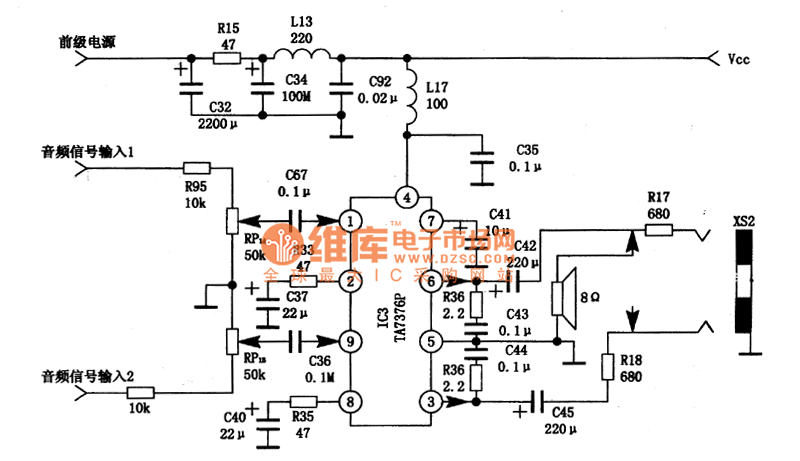

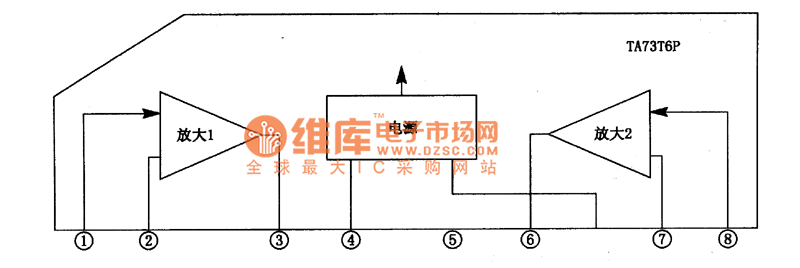

TA7376P is a dual track power amplification integrated circuit and it is of the characteristic that quiescent current is samll,power supply noise is low,output power is big,outward elements are few and so on.The scope of the working power supply is 4.5-9V,typical working voltage is 6V.1.The inner circuit and function of pins of TA7373FThe inner circuit of TA7373F integrated package is shown as picture 1.This IC adopts single inline 9 pinned package.Its function and data of pins are shown as chart 1. 2.TA7376P typical application circuitThe typical application circuit of TA7376P integrated package is shown as picture 2.
