TA7232P dual audio power amplifition integrated circuit

Published:2011/6/14 3:32:00 Author:chopper | Keyword: dual audio power, amplifition, integrated circuit | From:SeekIC

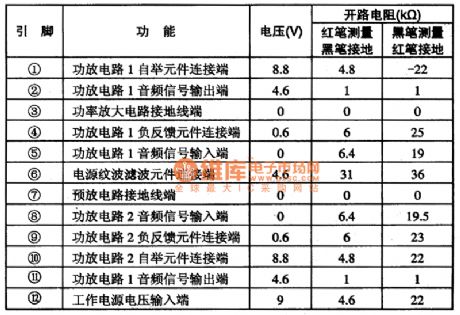

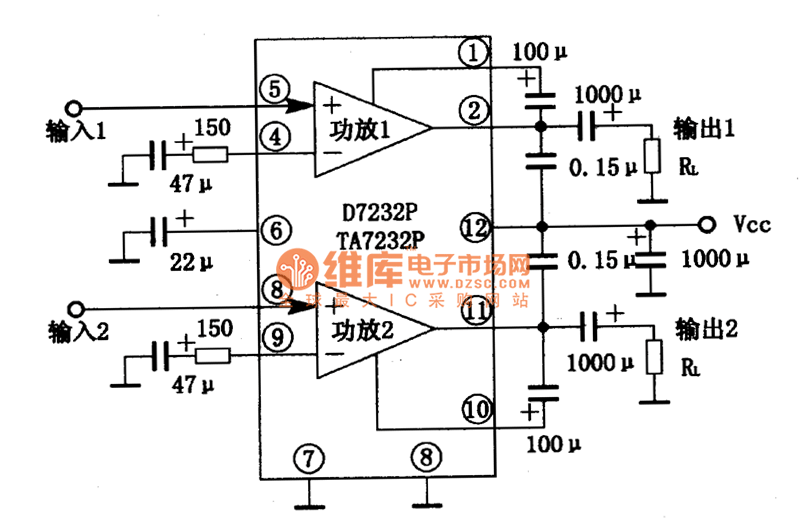

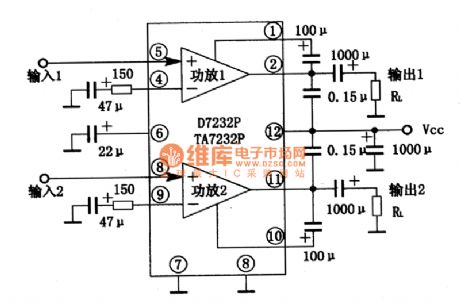

TA7232P is a dual track audio power amplifition integrated circuit produced by Company TOSHIBA,and it is applied to stereo radio and tape player,music center and so on as a power amplifier.1.The inner circuit and function of pins of TA7232PTA7232P integrated package inner circuit is formed by two audio power amplifition circuits of same function.Its integrated package inner circuit and typical application circuit which forms dual track are shown as picture 1.This IC adopts 12 pins single inline package,its function and data of pins of the integrated circuit are shown as chart 1.
