TA7215P dual track audio power amplifition integrated circuit

Published:2011/6/16 21:53:00 Author:chopper | Keyword: dual track, audio power, amplifition, integrated circuit | From:SeekIC

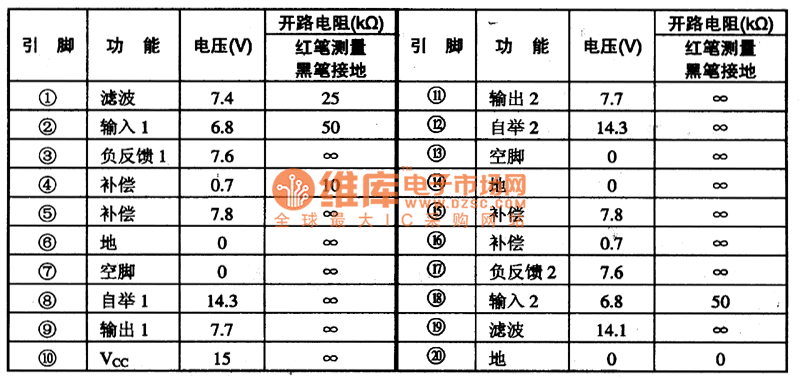

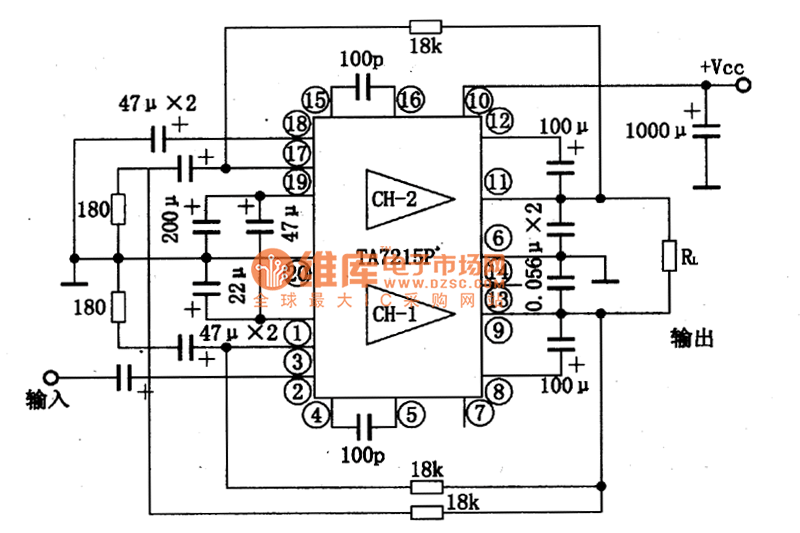

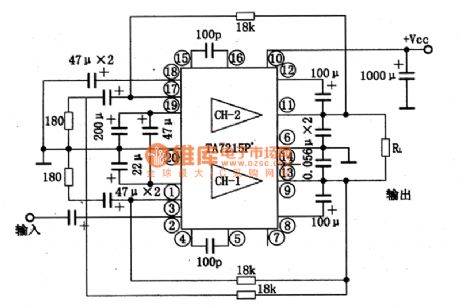

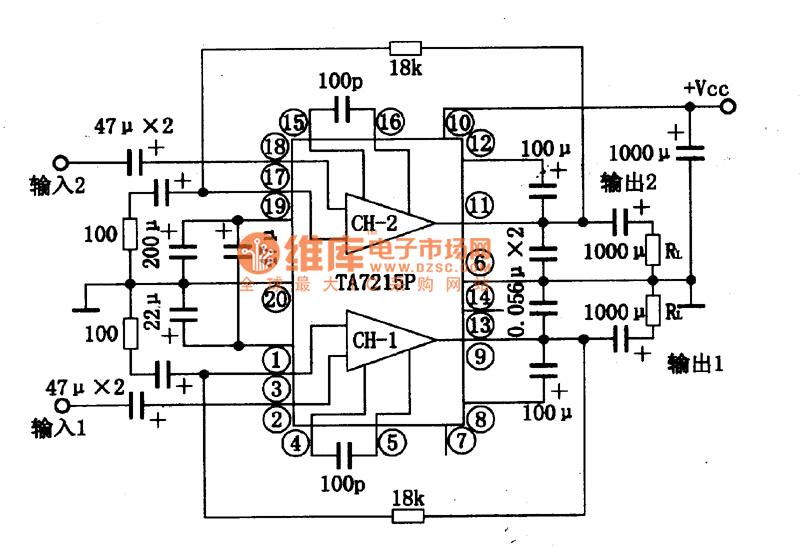

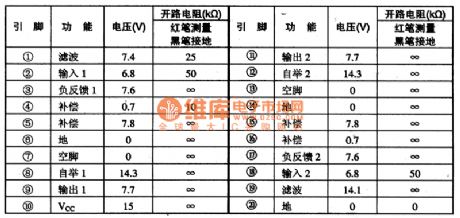

TA7215P is a dual track audio power amplifition integrated circuit,and it is applied to home-use audios and other tape recording players.1.inner circuit and typical application circuitThe inner circuit and typical application circuit of TA7215P integratedcircuit are shown as picture 1.This IC adopts dual inline 20 pinned package.Its function and data of pins of the integrated circuit are shown as chart 1. 2.the main electrical parameter of TA7215PThe scope of working power supply of TA7215P integrated circuit is 4.5-16V.When the load resistance RL=4Ω,THD=10%,f=1KHz,the output power of dual trackis 2.2W if Vcc=9V.
