SIMPLE_TEST_AUDIO_AMPLIFIER

Published:2009/6/19 2:53:00 Author:May | From:SeekIC

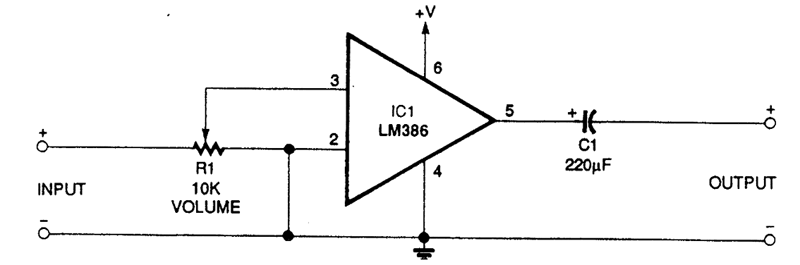

This circuit has a gain of about 20. A suitable power supply voltage is 5 to 12 V, depending on the desired audio output power level.
