SERIES_PARALLEL_LOOP_ALARM

Published:2009/6/14 21:38:00 Author:jailer | From:SeekIC

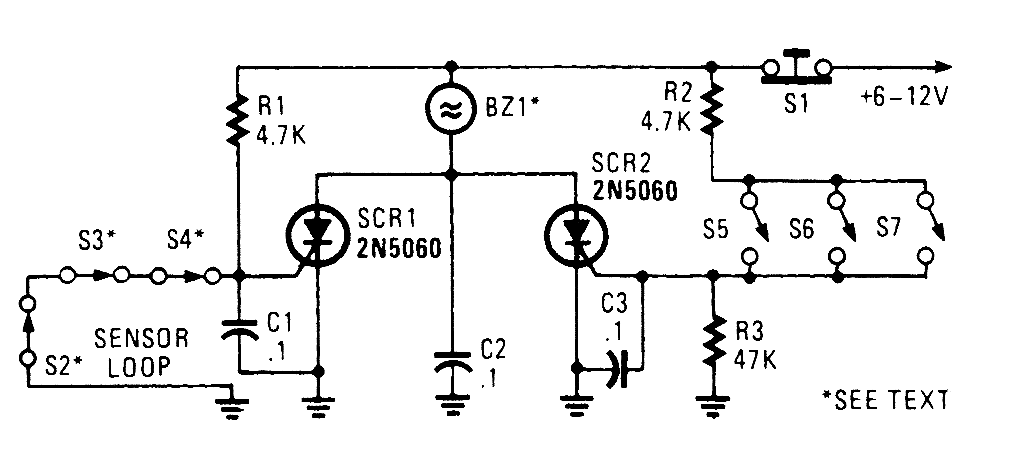

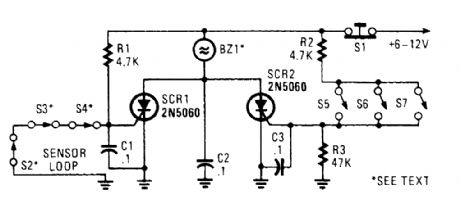

Two SCRs are used with two sensor loops. One loop uses series switches, the other loop parallel switches. When a switch actuation occurs, the SCR triggers. The alarm should be a noninterrupting type.
