MC3359-Narrow band FM ZF integrated circuit diagram

Published:2011/5/22 1:43:00 Author:leo | Keyword: MC3359-Narrow band FM ZF integrated circuit diagram | From:SeekIC

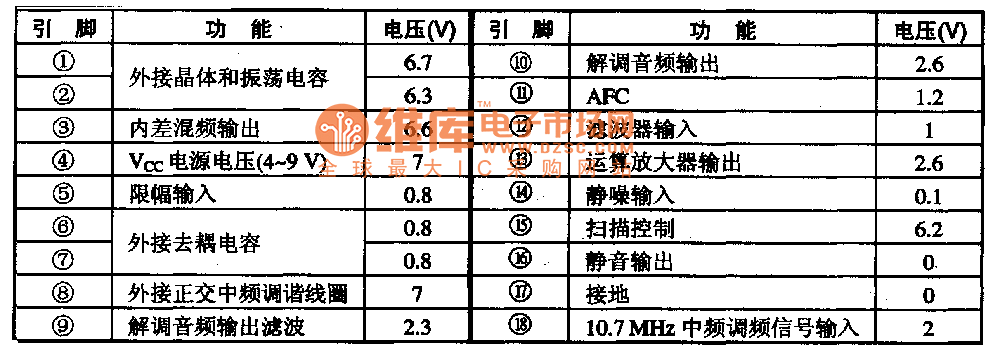

MC3359 is a type of narrow band FM ZF integrated circuit which applies to frequency modulation of ZF circuit in duplex operation communication devices. 1.Function features:The integrated circuit MC3359 contains mixer circuit, oscillator, amplitude limiter, noise limitation detection, demodulator and other circuits. 2.Pin functions:MC3359 has two kinds of packages: one is 18-pin dual lie and the other is 20-pin patch(1 and 20 are NC while 2 to 19 pin correspond 1 to 18 pin). The picture gives all detailed information about the 18 pins.
