M62438-dual channel SUR solution circuit

Published:2011/6/10 21:24:00 Author:leo | Keyword: M62438-dual channel SUR solution circuit | From:SeekIC

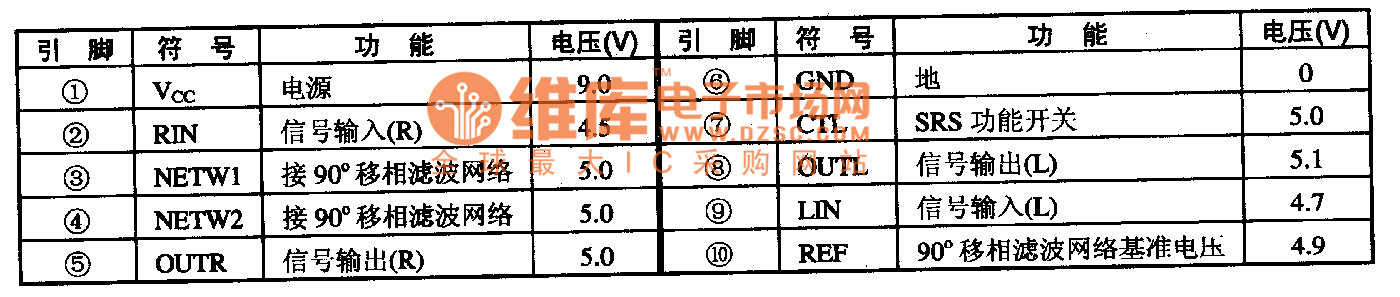

M62438 is the integrated circuit of the dual-channel analog SUR solution, which is widely used in audio devices and audio system of the advanced big screen color TV. It is produced by Mitsubishi in Japan. 1.Function features:M62438 contains two 90 angel phase-moving filter system, SRS function switch control circuit, basic power supply circuit of 90 angle phase-moving filter system, and other related circuits. 2.Pin function and dataM62438 adopts 10-pin package methods. Functions of all pins and related data are shown in the picture.
