LM386 universal audio power amplifier circuit

Published:2011/6/29 0:38:00 Author:chopper | Keyword: universal, audio power amplifier | From:SeekIC

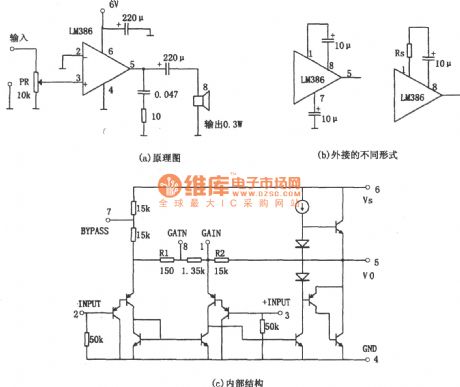

The picture is a universal audio power amplifier circuit.The picture (a) shows the principle,and this circuit adopts integrated power amplifier LM386.This element is a universal power amplifier and it is cheap.The picture (c) shows the inner structure of LM386.
