LM2437T-The video output amplifier integrated circuit

Published:2011/7/10 2:31:00 Author:leo | Keyword: Video, Output amplifier, Integrated circuit | From:SeekIC

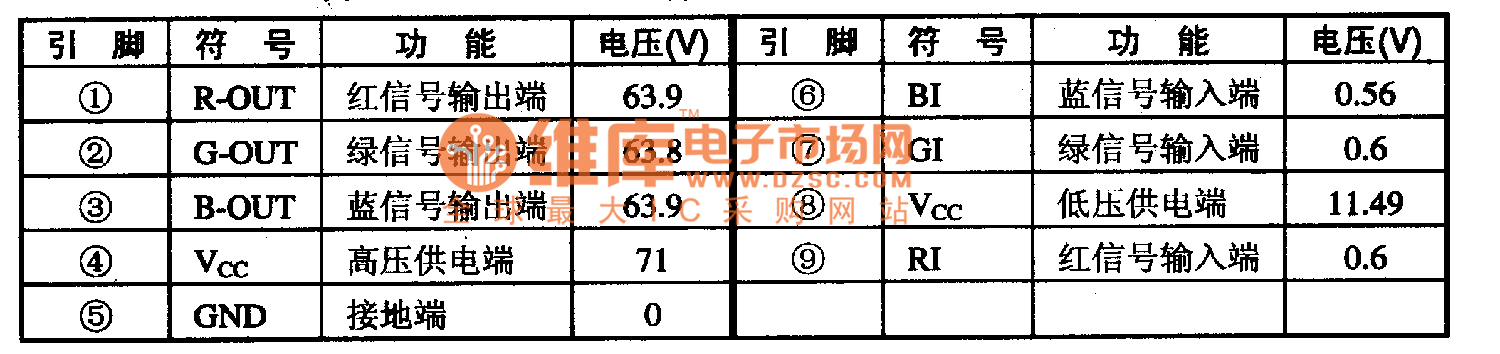

LM2437T is a kind of video output amplifier integrated circuit made by America national semiconductor company which is widely used in color screen of the computer. Function feature:The integrated circuit LM2437T contains R, G, B three fundamental color signal amplifier circuit, high voltage power supply circuit, low voltage power supply circuit and other related circuits. Pin function and data:The integrated circuit LM2437T uses 9 pin single-line package which is widely used in color screen of Samsung 743DFS.The pin function and related data are shown in the picture.
