LLA7016-Switch integrated circuit

Published:2011/7/10 3:39:00 Author:leo | Keyword: Switch integrated circuit, television stereo system | From:SeekIC

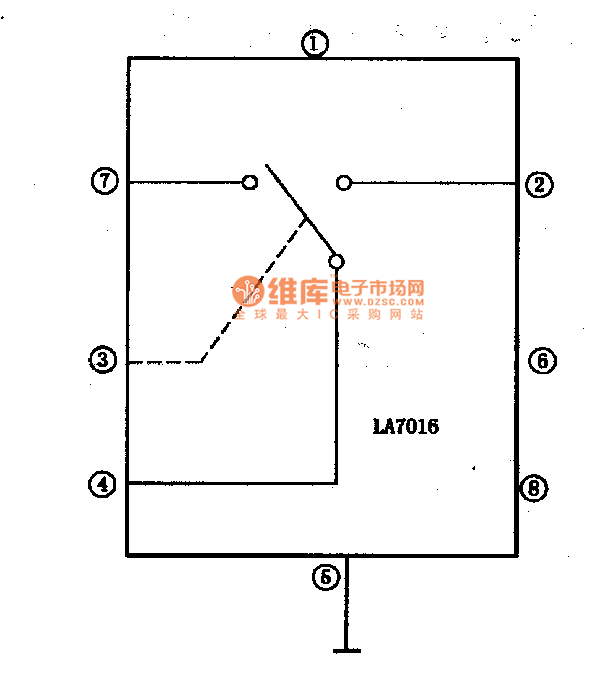

LLA7016 is single two bits switch integrated circuit produced by Sanyo Company. It belongs to common part and is widely used in television stereo system, combination audio and other stereo system. LA7016 inner circuit diagram and pin functions:Its pin functions are shown in picture 1-1. It uses 8 pins single line package which is shown in the picture: Pin 1-work power source input port Pin 2-The first audio signal input portPin 3-electronic switch control signal input portPin 4-Converted first signal or second signal output portPin 5- Ground connecting portPin 6,8-Blank portPin 7-second audio signal input port
