LA4533M-Dual channel power amplifier integrated circuit

Published:2011/7/10 19:24:00 Author:leo | Keyword: Dual channel, power amplifier | From:SeekIC

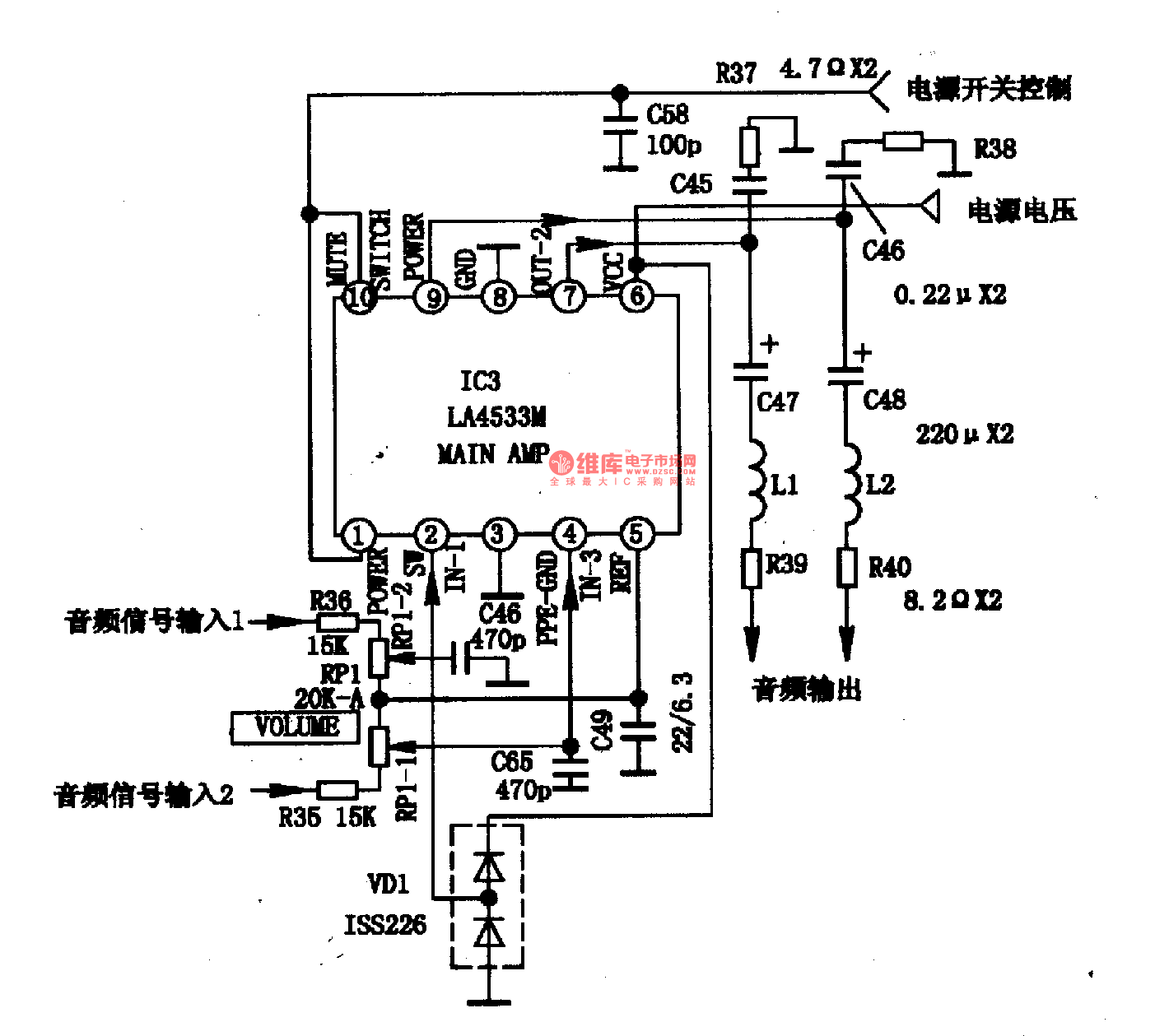

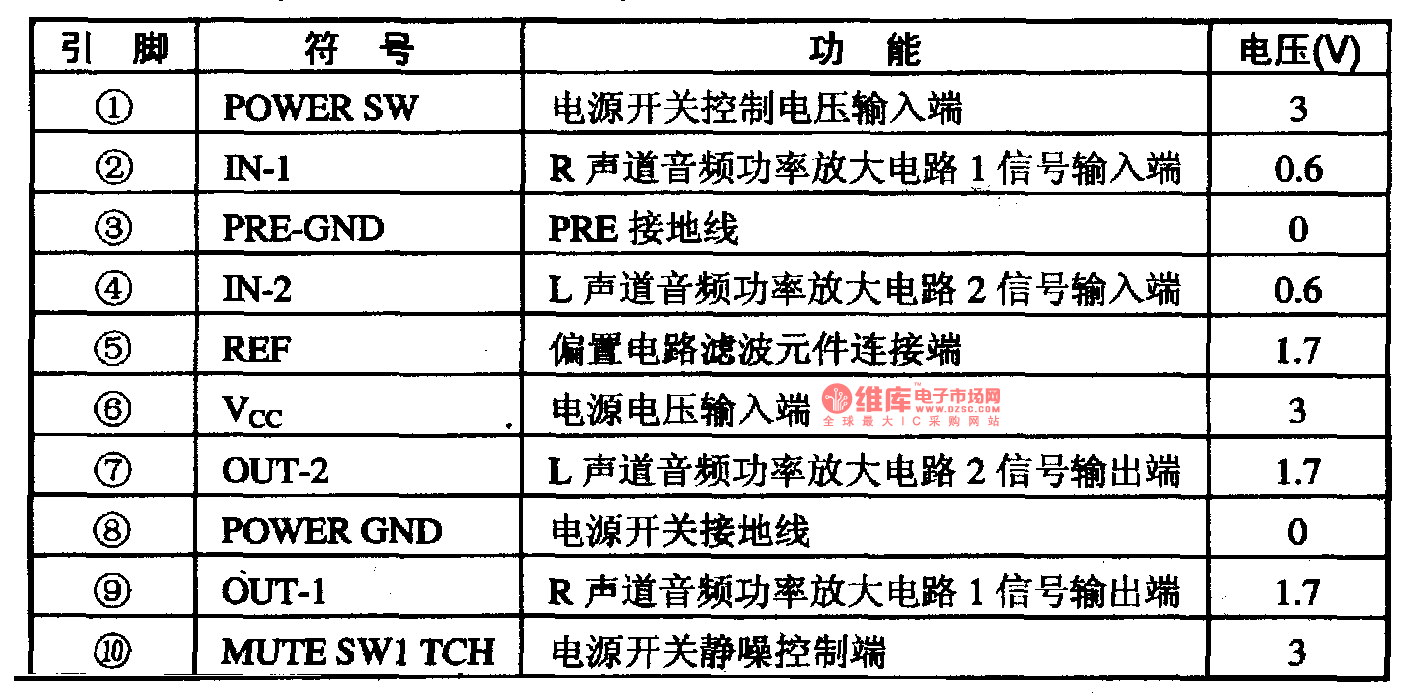

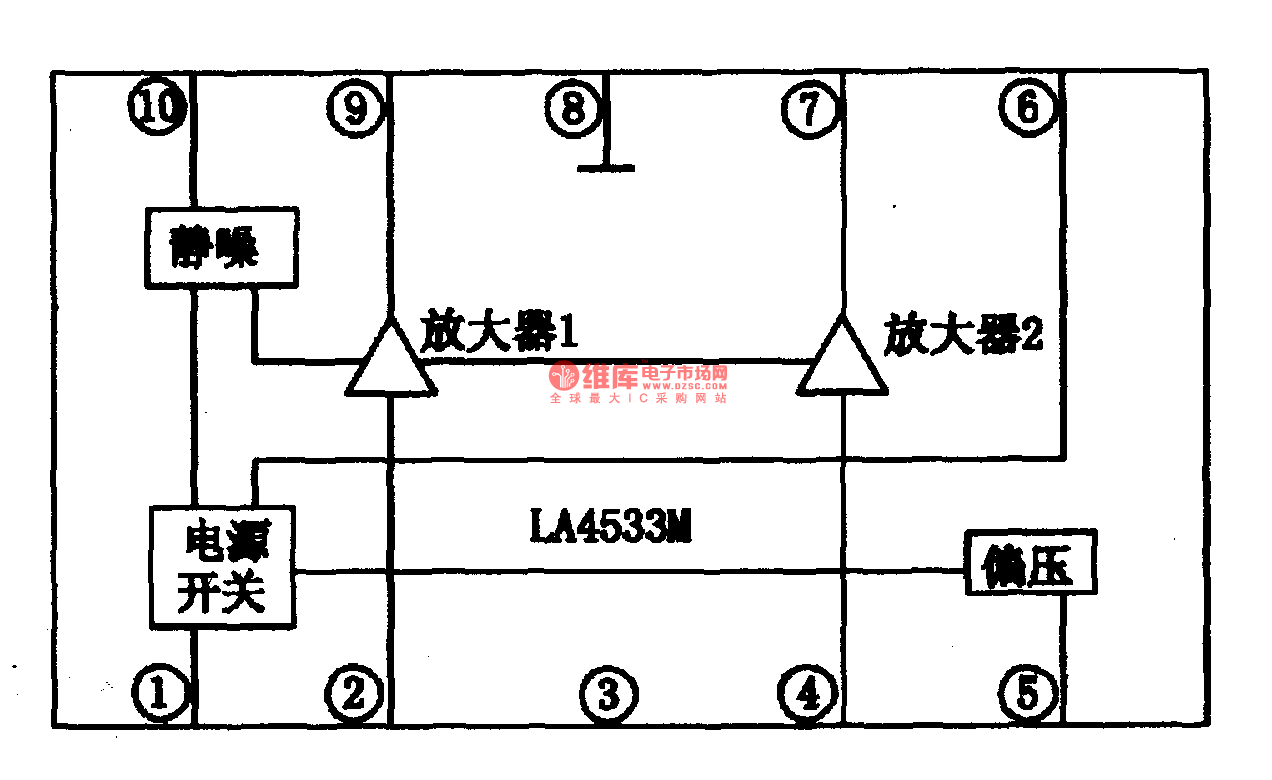

LA4533M is a dual channel power amplifier integrated circuit produced by Sony Company in Japan which is widely used in mini recorder, walk man and other low voltage and small power stereo system.1. LA4533M inner circuit diagram and pin functions:LA4533M contains two power amplifiers, power supply AMACP switch circuit, and filter. It uses 10-pin dual-line package. The inner circuit diagram of LA4533M is shown in the picture 1-1.2. CXAl278N classic applying circuit is shown in the picture 1-2.
