LA4520-Single chip stereo player integrated circuit diagram

Published:2011/7/10 22:59:00 Author:leo | Keyword: Single chip, stereo player | From:SeekIC

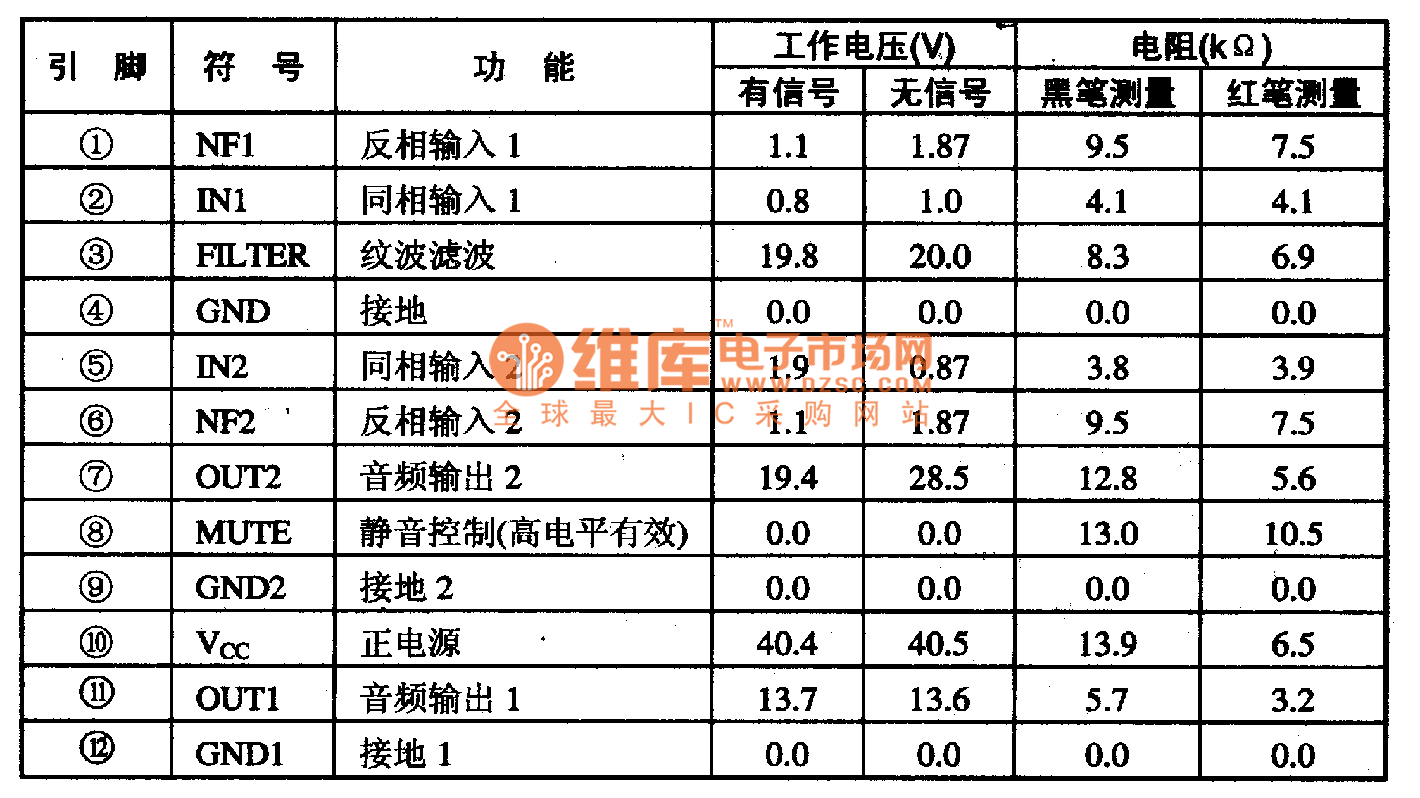

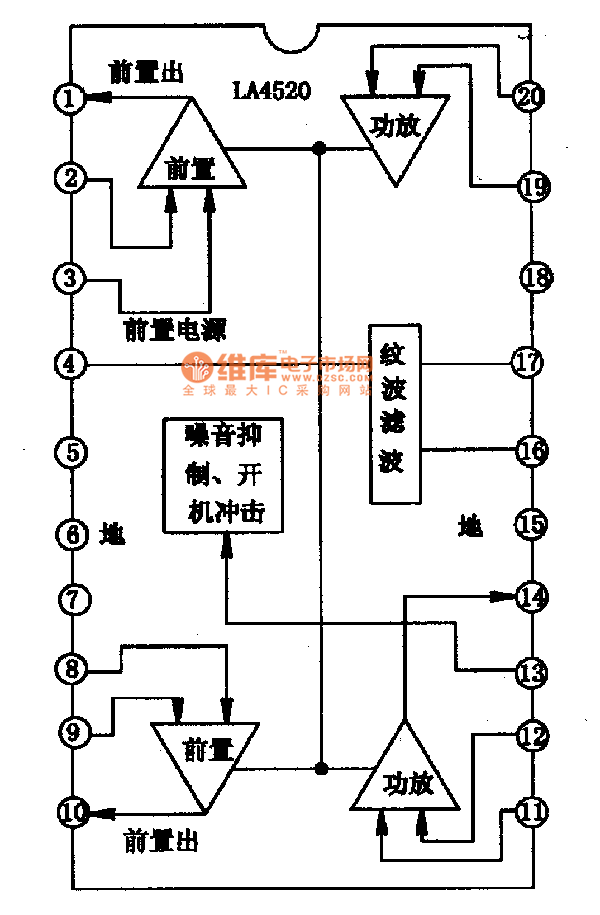

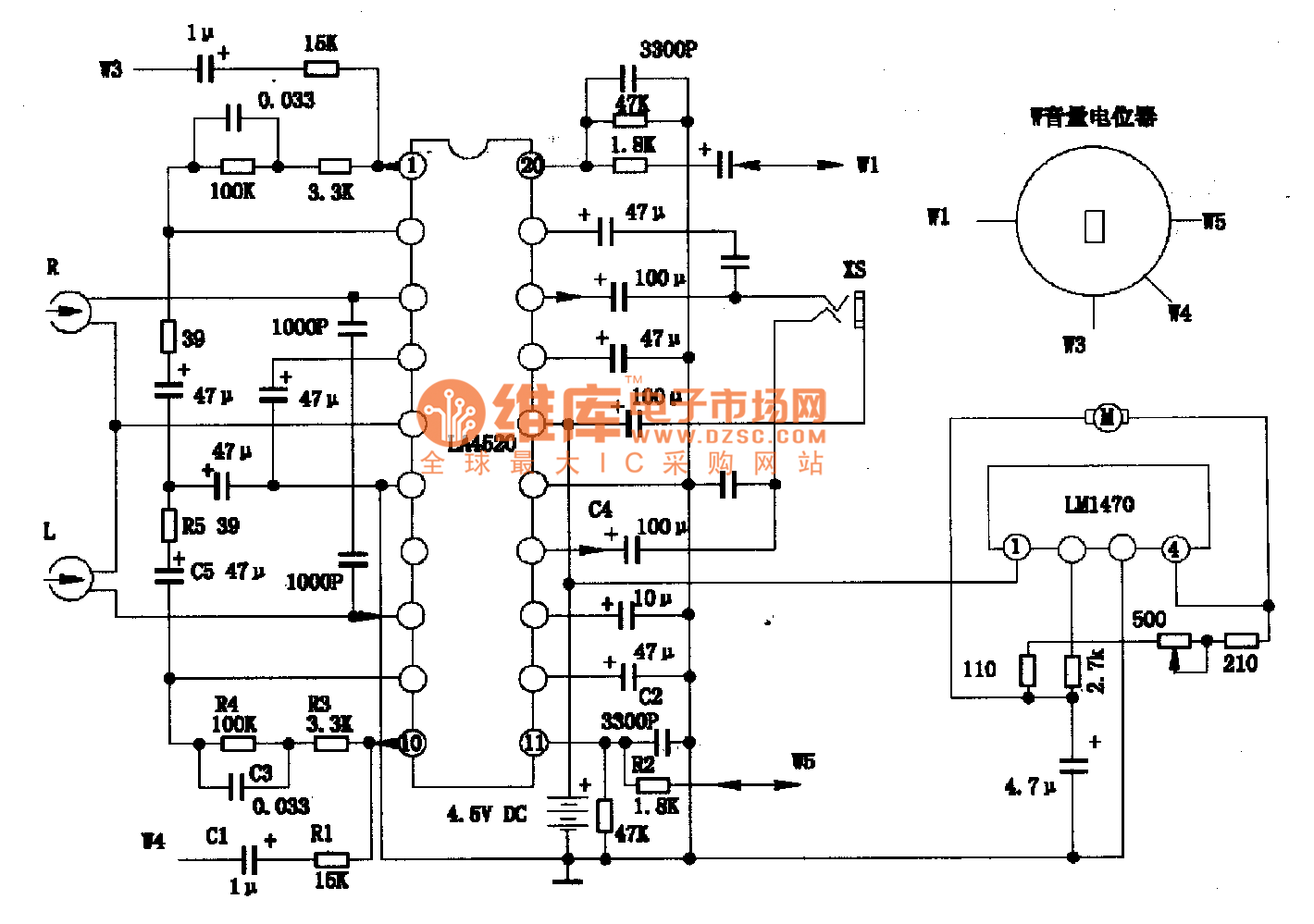

LA4520-Single chip stereo player integrated circuit diagram LA4520 is a single chip player integrated circuit. It is widely used in all kinds of players. LA4520 inner circuit diagram and pin functions:LA4520 inner circuit contains two similar playing fronted amplifier circuits, power amplifier circuits and so on. As picture 1 shows, this IC uses 20 pin dual line package and related information are shown in the picture. LA4520 classic applying circuit: the picture 2 shows its classic applying circuits.
