CXA8008P-Single chip player integrated circuit

Published:2011/7/10 5:53:00 Author:leo | Keyword: Single chip, dual channel | From:SeekIC

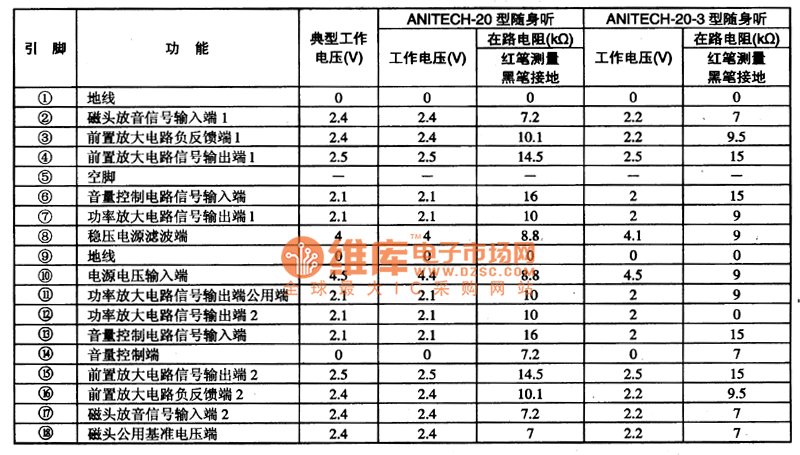

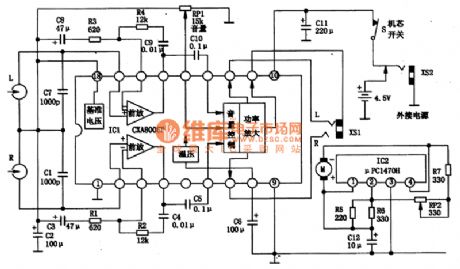

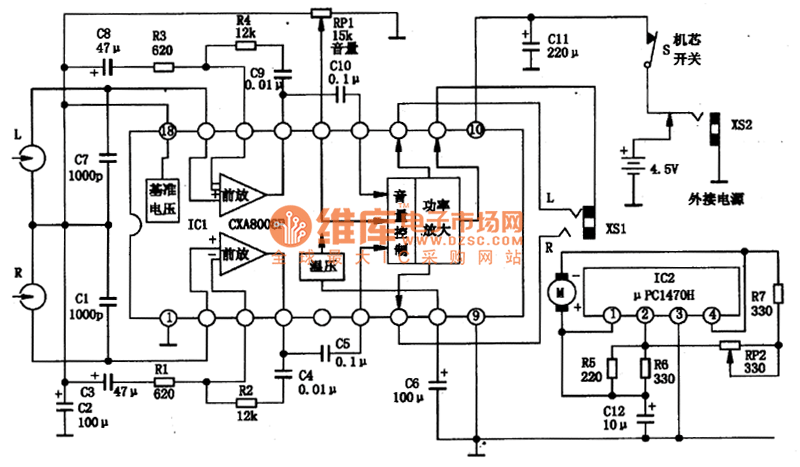

CXA8008P is a kind of single chip player integrated circuit produced by Sony Company. The hot product ANYTECH20 player in the market is made up of this component. 1.CXA8008P inner circuit diagram and pin functions: CXA8008P is dual channel single chip player circuit. Every channle contains a fronted amplifier, DC volume control circuit and power amplifier. Its inner circuit diagram is shown in the picture 1. This IC uses 18 pin dual line package and its pin functions are shown in the picture 1. 2. CXA8008P classic applying circuits. Its classic applying circuits are shown in the picture.
