CXA1034P-Single chip stereo integrated circuit

Published:2011/7/13 4:40:00 Author:leo | Keyword: Single chip, stereo | From:SeekIC

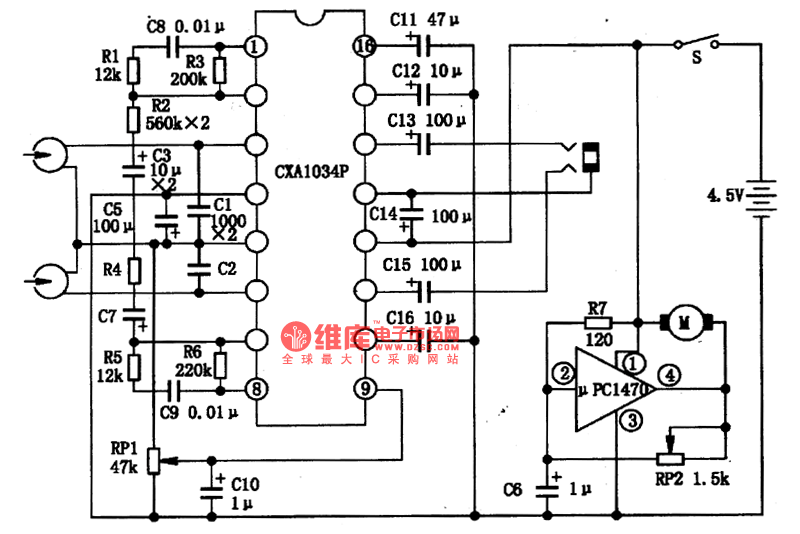

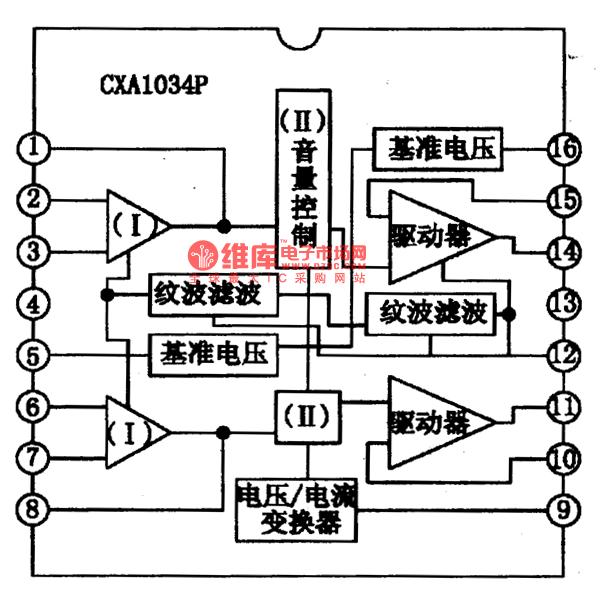

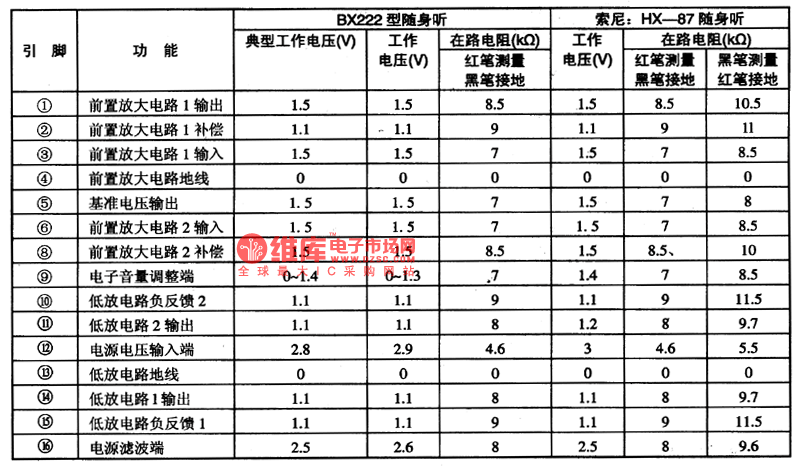

CXA1034P is a single chip playback integrated circuit produced by Sanyo Company in Japan which is widely used in all kinds of low voltage recorders. 1. CXA1034P inner circuit diagram and pin functions:CXA1034P contains two similar fronted power amplifiers, two power amplifiers, less outer components, and single electric voltage controlling stereo volume controller. It uses 16-pin dual-line package. The inner circuit diagram of CXA1034P is shown in the picture 1.2. CXA1034P classic applying circuit is shown in the picture 2.CXA1034P’s power supply voltage is from 1.8 B to 10 V.
