CL328-6-Communication signal chip microcomputer integrated circuit

Published:2011/7/13 4:38:00 Author:leo | Keyword: Signal chip, communication | From:SeekIC

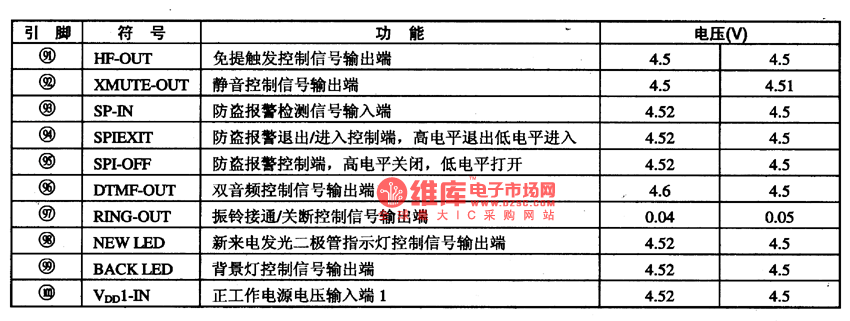

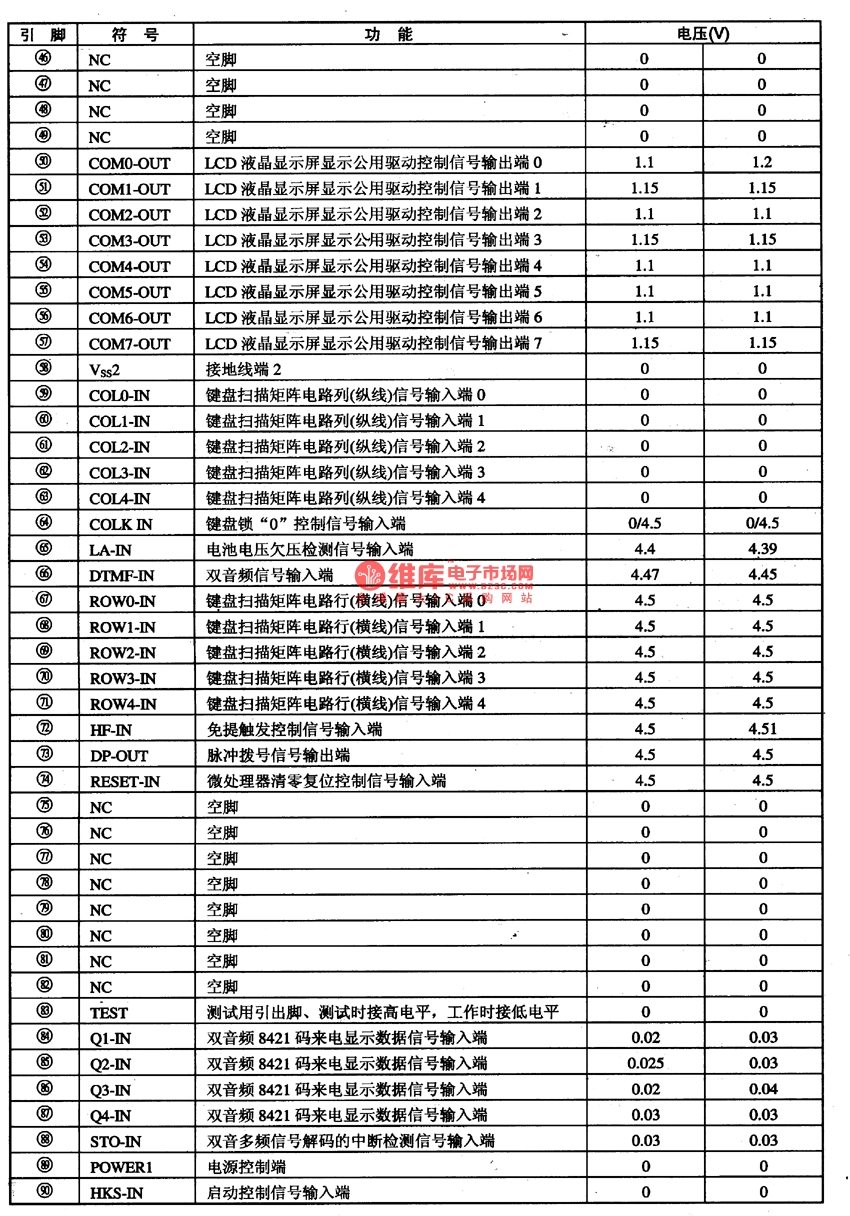

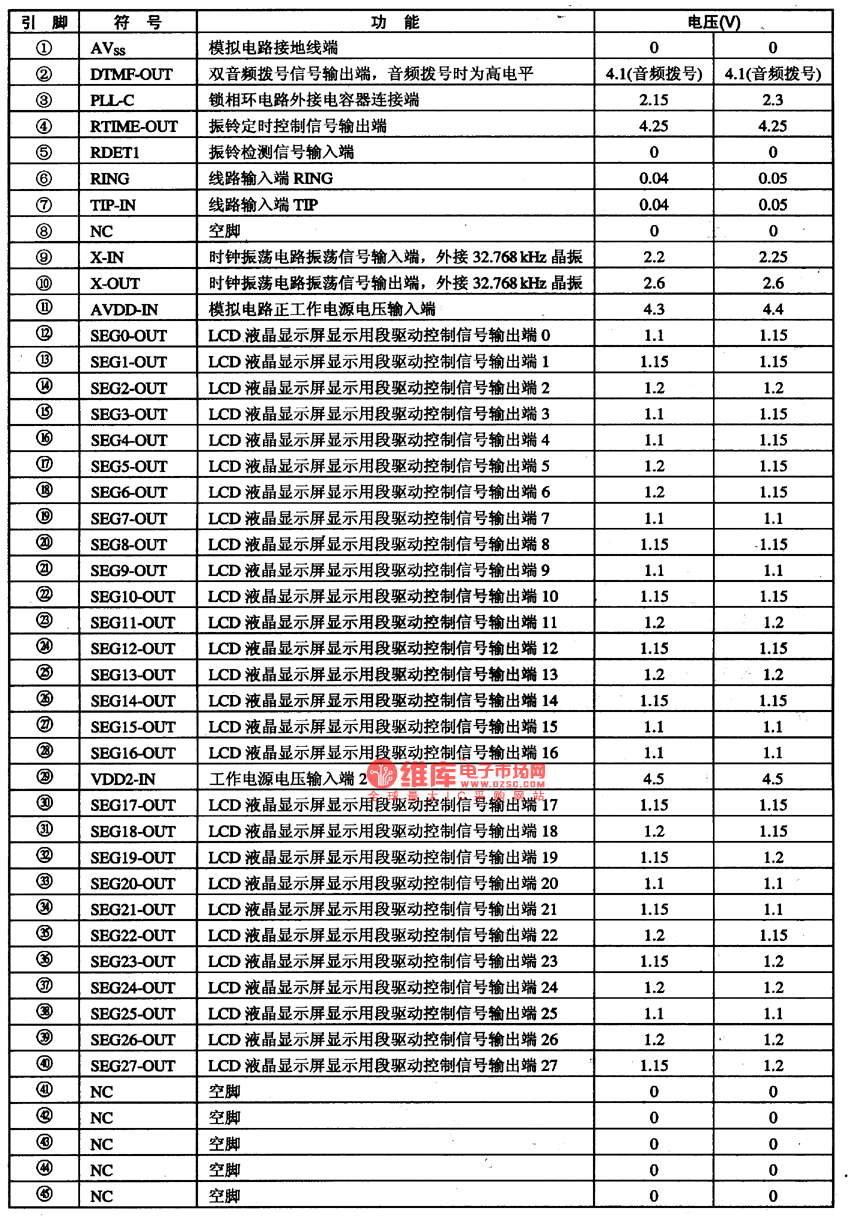

CL328-6 is communication signal chip microcomputer integrated circuit which is widely used in caller ID telephone.1.Function features:CL328-6 contains dual audio signal generator circuit, theft deterrent telephone, pulse signal generator circuit, caller ID decoding circuit, battery under voltage test circuit, ringing test circuit, display drive circuit, key switch RoHS code circuit and others. 2.Pin functions and data:It uses 100-pin soft package and the pin functions as well as related information are shown in the picture 1.
