80_WATT_IC_AUDIO_AMPLIFIER

Published:2009/6/19 1:54:00 Author:May | From:SeekIC

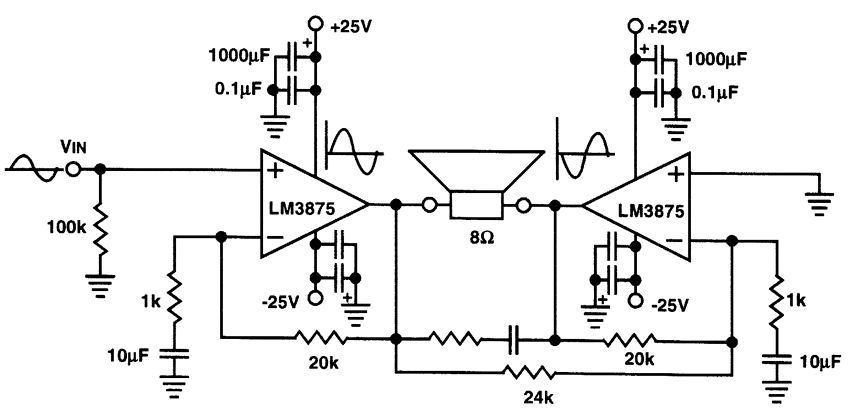

This audio power amp will deliver 80W of audio into an 8-Ω load The LM3875 IC devices shouldbe suitably heatsinked。Note that the amplifier IS a bridged circuit，with both speaker leads“hot.”
