5_W_CLASS_A

Published:2009/6/29 2:00:00 Author:May | From:SeekIC

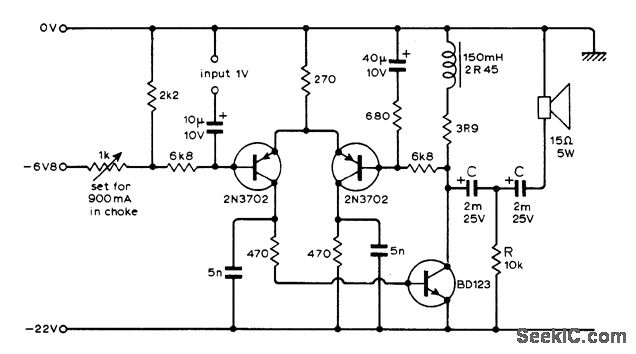

Three-transistor feedback loop gives excellent DC stability, while arrangement of two capacitors and resistor feeding loudspeaker keeps these capachors properly polarized as AF output voltage swings above and below zero Ievel.-R. H. Pearson, Novel 5-Watt Class A Amplifier Uses Three-Transistor Feed-back Circuit, Wl'reless World, March 1974, p 18.
