50_mW_FLAT_TO_30_kHz

Published:2009/6/29 22:09:00 Author:May | From:SeekIC

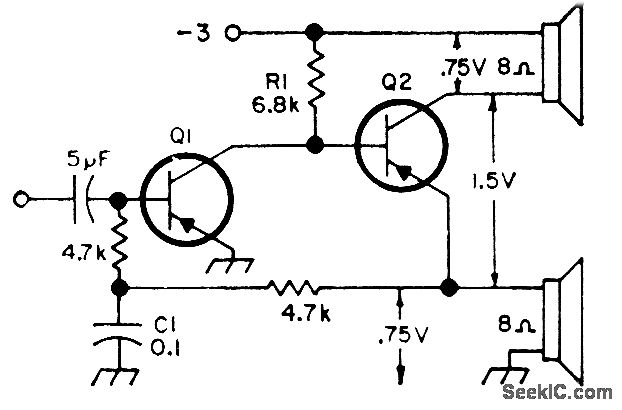

Power amplifier achieves push-pull output with single transistor. Both transistors should be germanium such as 2N404 SK3004 or HEP-253.-Circuits, 73 Magazine, Feb. 1974, p 100.
