1_W_NONINVERTlNG

Published:2009/6/29 2:00:00 Author:May | From:SeekIC

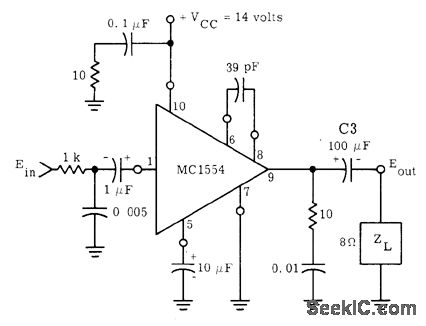

Motorola MC1554 IC operates from single supply and uses capacitive coupling to both source and load, for voltage gain of 9 with frequency response (-3 dB) from 200 to 22,000 Hz. Input impedance is 10K, and total harmonic distortion is Iess than 0.75%.Use external heatsink.- The MC1554 One-Watt Monolithic Integrated Circuit Power Am-plifier, Motorola, Phoenix, AZ, 1972, AN-401, p 2.
