1_W_NONINVERTING_WITH_SPLIT_SUPPLY

Published:2009/6/29 2:00:00 Author:May | From:SeekIC

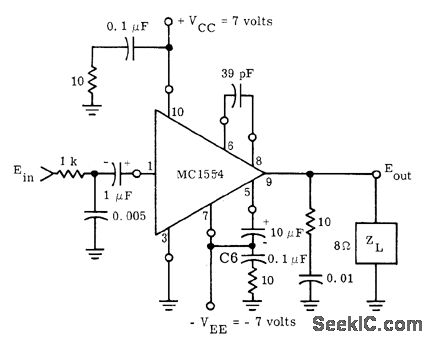

Motorola MC1554 IC is connected for operation from ±7 V to provide voltage gain of 9 overfre。quency range（-3 dB）of 40 to 22,000 Hz，Inputimpedanceis 10K,and total harmonic distortionis is less than 0.75％， Use external heatsink，-″The MC1554 One-Watt Monolithic Integrated Circtiit Power AmpIifier， Motorola、 Phoenix,AZ,1972、AN-401、p 2
