Amp with Tone Controls & Soft Switching

Published:2012/11/19 21:47:00 Author:muriel | Keyword: Amp , Tone Controls, Soft Switching | From:SeekIC

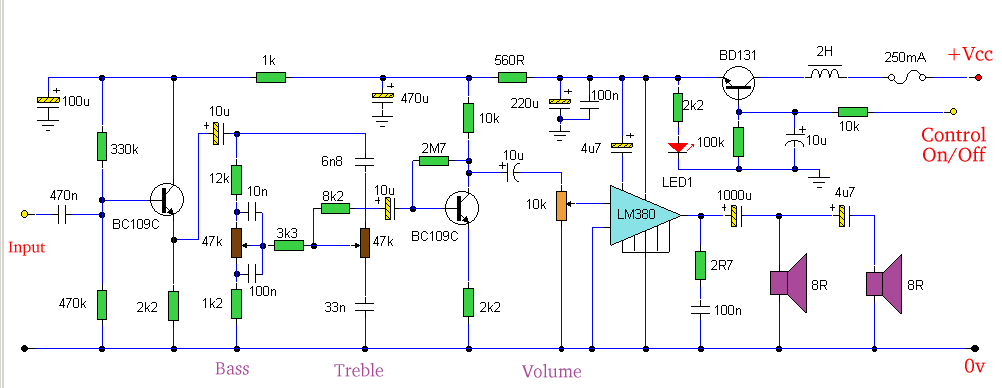

Built around an LM380, this amplifier includes tone controls and electronic soft switching . The soft switching circuitry ensures power is built up gradually eliminating the dc thump.
