A_F_AMPLIFIER_WITH_SQUELCH_2

Published:2009/7/17 22:40:00 Author:Jessie | From:SeekIC

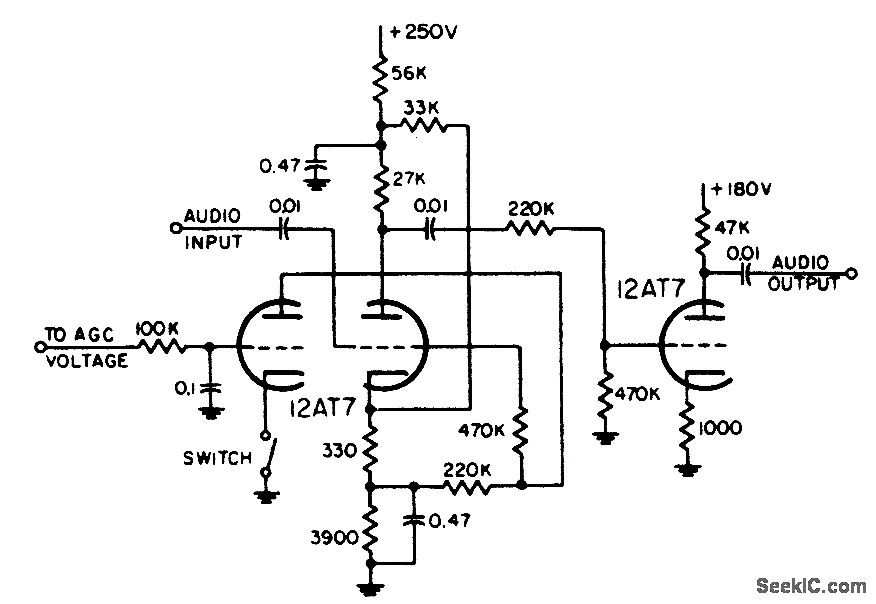

Used to make first audio stage inoperative during no-signal condition in communication receiver.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N12-2.
