A_33_W_BRIDGE_COMPOSITE_AMPLIFIER

Published:2009/6/15 21:56:00 Author:May | From:SeekIC

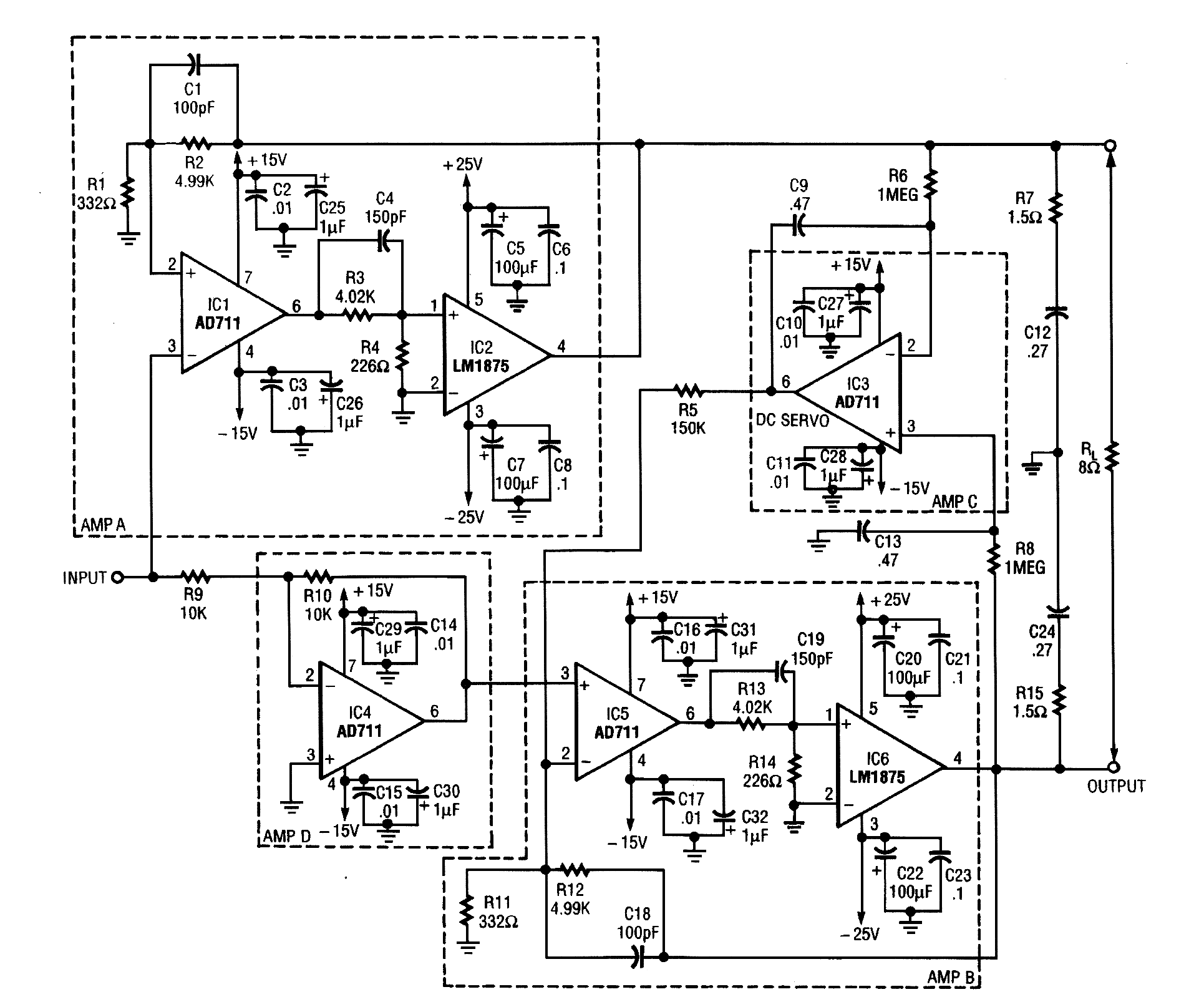

Two LM1875 ICs provide 33 W of audio. IC4 is used as a phase inverter. IC6 and IC2 must be heatsinked.
