AN8706FHQ-the integrated circuit of DVD front-end processor

Published:2011/5/18 3:40:00 Author:Borg | Keyword: integrated circuit, front-end processor | From:SeekIC

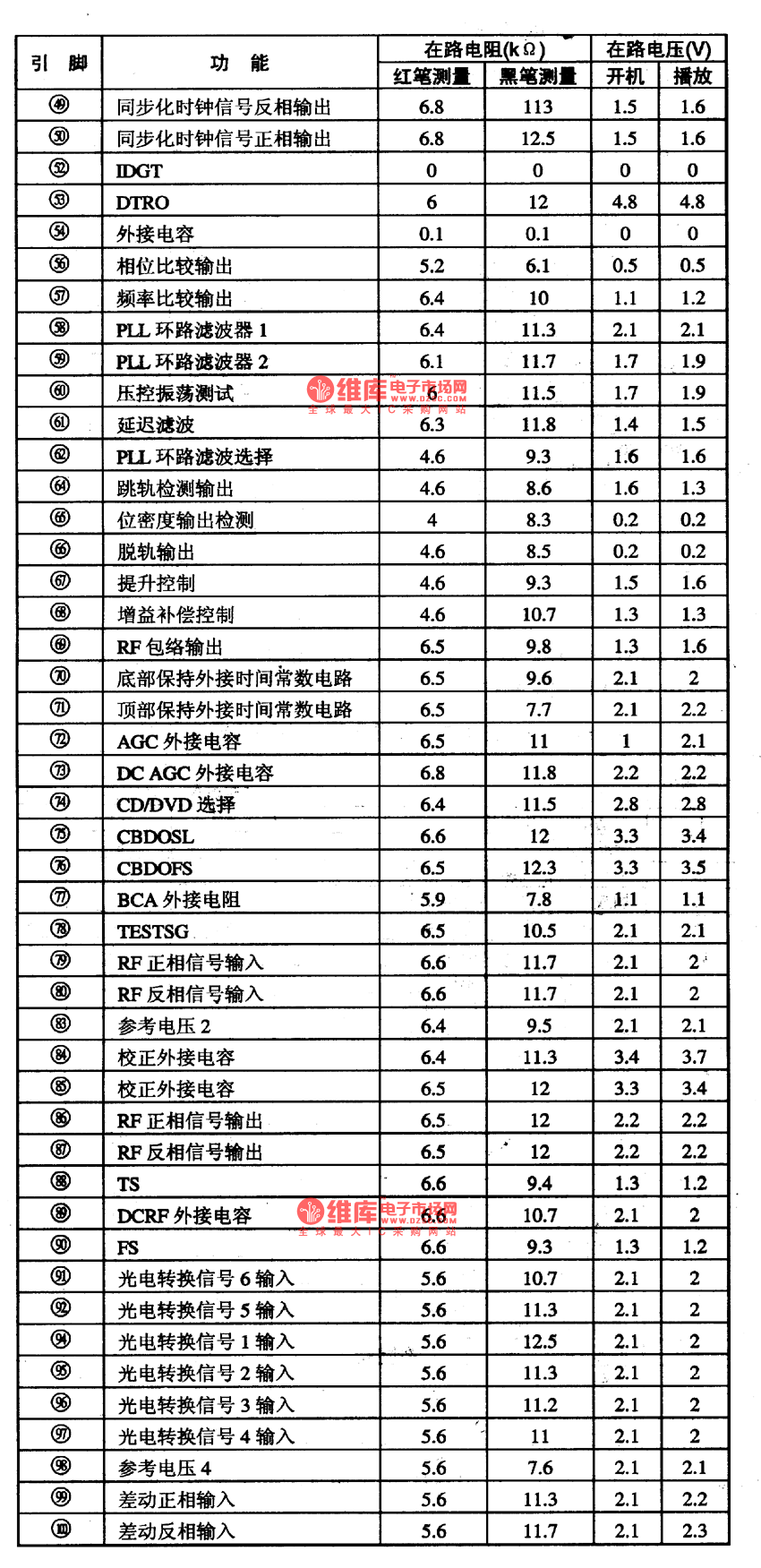

AN8706FHQ is an integrated circuit of DVD front-end processor produced by Panasonic especially for its CR2一DV3 DVD player.1.function featuresThe main function of AN8706FHQ is that it can convert the signals which are delivered and magnified by laser heads into synchronous RF digital signals, besides ,it also shifts the disc information read out by laser heads into focus error and track error signals for the sub-circuits. The internal circuit of it is as shown in Figure 1. 2.pin functions and dataThe pin functions and data are listed in Table 1.
