AN7147N duan-channel power amplifier integrated circuit

Published:2011/6/28 8:04:00 Author:Christina | Keyword: duan-channel, power amplifier, integrated circuit | From:SeekIC

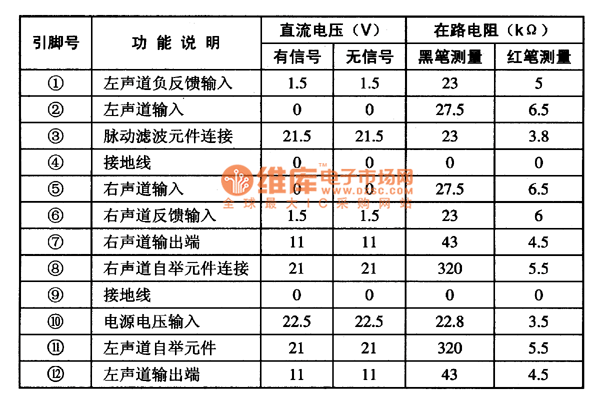

The AN7147N is designed as one kind of duan-channel power amplifier integrated circuit that is produced by the Panasonic company, and it can be used in the large screen color TVs which uses the Panasonic movements. 1.Features The AN7147N is composed of two channels of audio power amplifier circuit with the same function, the overheating and short circuit protection circuit and other auxiliary function circuits. The output power of every sound channel is about 12.5W. 2.Pin functions and data The AN7147N uses the 12-pin single row DIP package, the pin functions and data are as shown in table 1. Table 1 The pin functions and data of the AN7147N
