AN7124 duan-channel power amplifier integrated circuit

Published:2011/6/29 1:02:00 Author:Christina | Keyword: duan-channel, power amplifier, integrated circuit | From:SeekIC

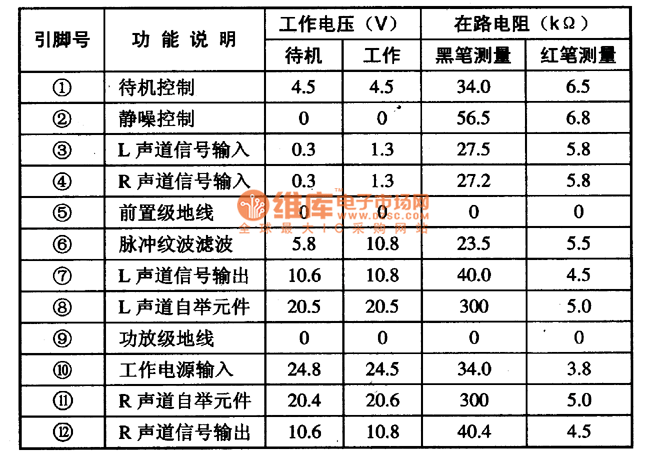

The AN7124 duan-channel power amplifier integrated circuit is produced by the Panasonic company that can be used in the large screen color TVs that use the Panasonic series machine. 1.Features The AN7124 is composed of the two channels of power amplifier circuits with the same function, the standby control circuit, the static noise control circuit and the over-temperature and short circuit protection circuit.etc. The output power of the single track is about 15W. 2.Pin functions and data The AN7124 uses the 12-pin single dual DIP package, the pin functions and data are as shown in table 1. Table 1 The pin functions and data of the AN7124
