AN7120 2.lW-the integrated circuit of audio power amplifier

Published:2011/5/19 21:31:00 Author:Borg | Keyword: integrated circuit, audio power amplifier | From:SeekIC

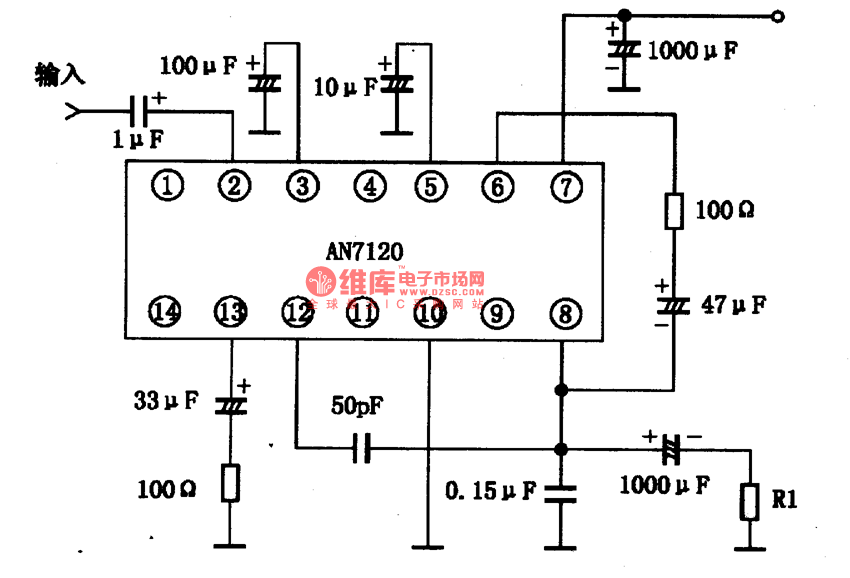

AN7120 is a integrated line circuit of 2.lW audio power amplifier which is produced by Panasonic. It is used in radios, recorders, record-players and computer stereos as the output stage.1.The internal circuit and pin functions AN7120 characterizes with low working voltage, large output power, trivial AC distortion, low engine starting noise and stable work even when the power supply is sharply changing. The pin of ④ can output stable voltage for pre-stage or something out of the circuit. The IC is in 14-lead dual in-line package. Table 1 pin functions and data of AN7120
