AN7105-The integrated reproducing circuit of single door stereo

Published:2011/5/19 1:06:00 Author:Borg | Keyword: integrated reproducing circuit, single door stereo | From:SeekIC

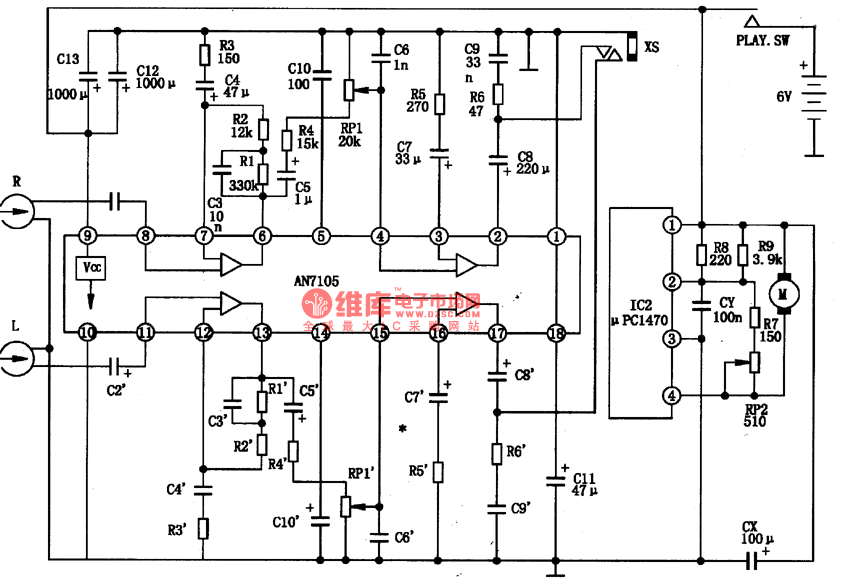

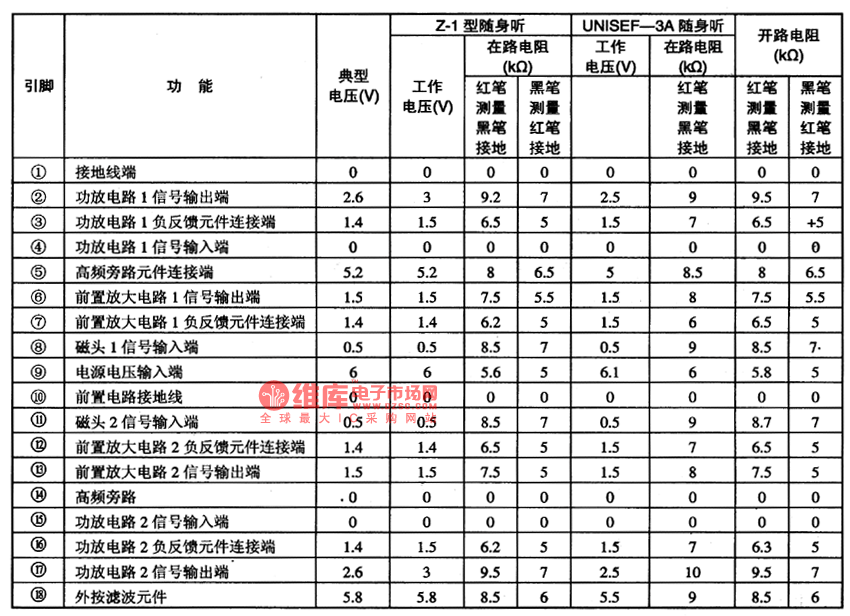

1.the internal circuit and pin functions of AN7105AN7105 consists of two lines of pre-amplifiers and balancers, and its pin functions and data are listed in Table 1. 2.the typical application circuit of AN7105 The typical application circuit of AN7105 is as shown in Figure 1. 3.signal courseMagnetic head signals come in from pins of (11) and ⑧, after magnifying and frequency compensation, they come out from (13) and ⑥, then they come in through (15) and ④ after the volume is magnified. Finally, the signals are output from (15) and ④, and the headphone is driven to generate sound.
