AN7060-The integrated circuit of preset audio motivation

Published:2011/5/19 6:12:00 Author:Borg | Keyword: integrated circuit, preset audio motivation | From:SeekIC

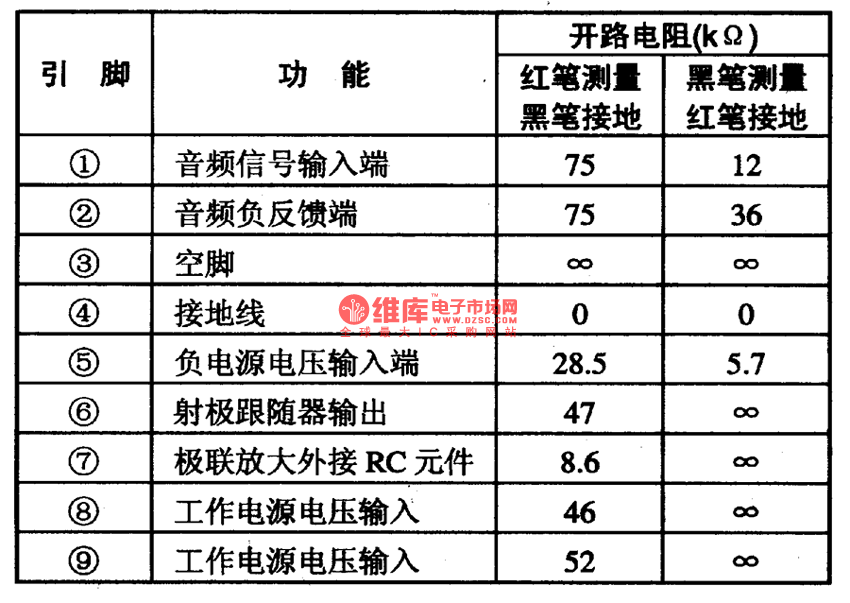

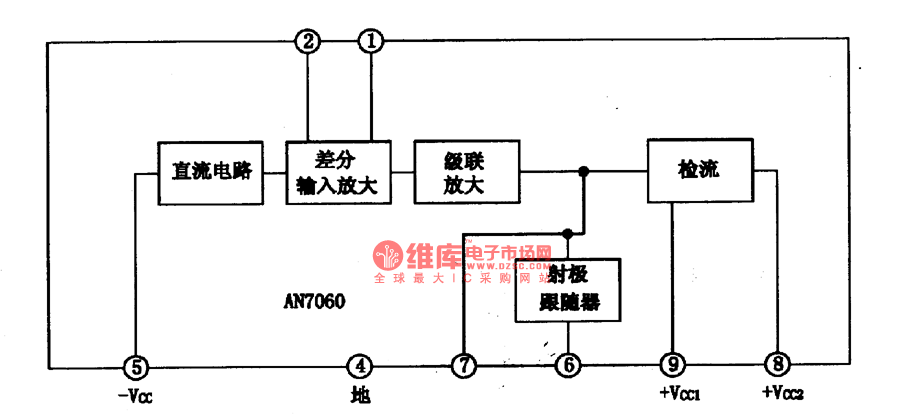

AN7060 is an integrated circuit of preset audio motivation produced by Panasonic, which is used in HI-FI stereos.1.the internal circuit and pin functions of AN7060AN7060 is an integrated circuit of high-pressure-proof preset audio, which is used to motivate a power amplifier of 60w, and it characterizes with low noise and litter distortion. The IC is in 9-lead single line package, whose internal circuit is as shown in Figure 1, and its pin functions and data are listed in Table 1. Figure 1 the internal circuit of AN7060 Figure 1 the internal circuit of AN7060
