AN5276 dual-channel audio power amplifier integrated circuit

Published:2011/6/30 3:55:00 Author:Christina | Keyword: dual-channel, audio power amplifier, integrated circuit | From:SeekIC

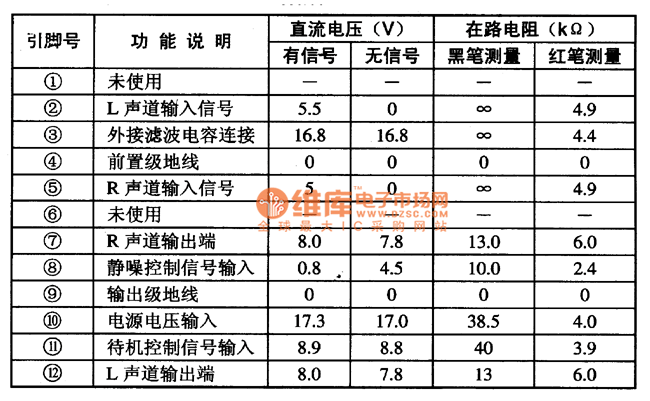

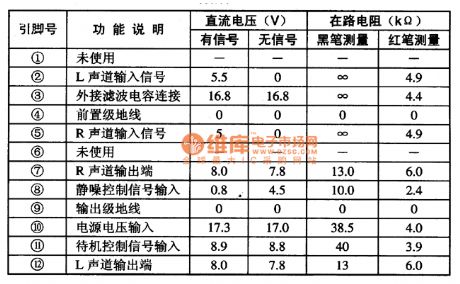

The AN5276 is designed as one kind of dual-channel audio power amplifier integrated circuit that can be used in the Panasonic, Sharp and Hitachi TV sets or the sound system's amplifier of the FuRi large screen color TV. 1.Features The AN5276 is composed of two channels of power amplifier circuits with the same function, the static noise control circuit, the standby control circuit and the over temperature and short-circuit protection circuit, the output power of every channel is about 12.5W. 2.Pin functions and data The AN5276 uses the 12-pin single row package, the pin functions and data are as shown in table 1. Table 1 The pin functions and data of the AN5276
