AN5273 dual-channel audio power amplifier integrated circuit

Published:2011/6/30 4:06:00 Author:Christina | Keyword: dual-channel, audio power, amplifier, integrated circuit | From:SeekIC

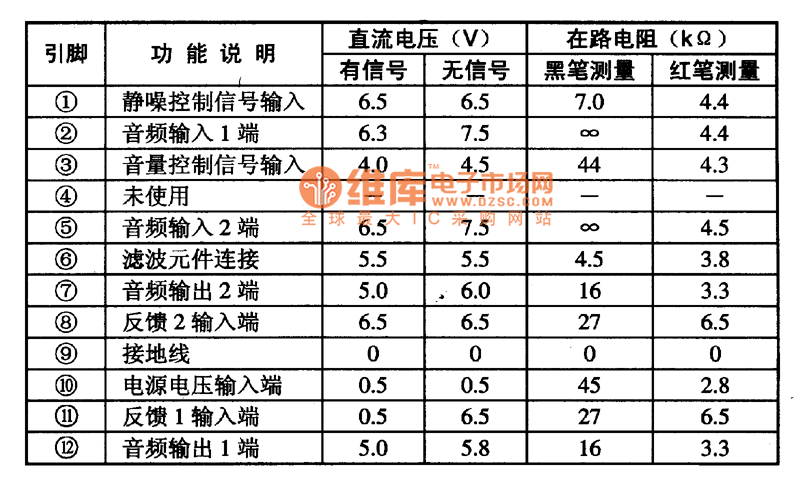

The AN5273 is designed as one kind of dual-channel audio power amplifier integrated circuit which is produced by the Panasonic company, and it can be used in the large screen color TVs and the home audio equipments. 1.Features The AN5273 is composed of two channels of power amplifier circuits with the same function, the static noise control circuit, the electronic volume control circuit and the over temperature and short-circuit protection circuit, the output power of every channel is about 5W. 2.Pin functions and data The AN5273 uses the 12-pin single row package, the pin functions and data are as shown in table 1. Table 1 The pin functions and data of the AN5273
