AN5265 audio power amplifier integrated circuit

Published:2011/6/30 4:19:00 Author:Christina | Keyword: audio power, amplifier, integrated circuit | From:SeekIC

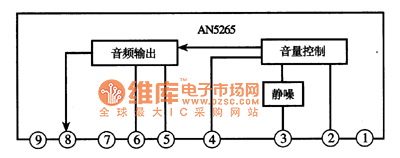

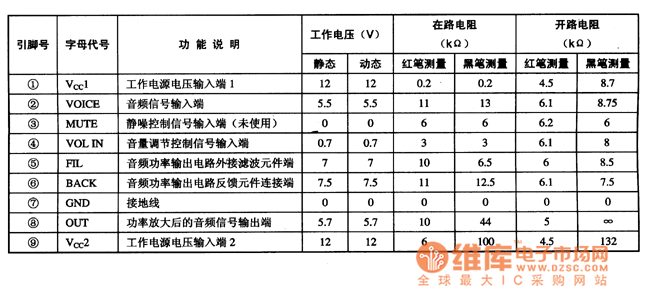

The AN5265 audio power amplifier integrated circuit is produced by the Panasonic company that can be used in a variety of sound systems as the power amplifier. 1.The internal circuit block diagram The AN5265 is composed of the electronic volume control circuit, the static noise control circuit and the audio output circuit.etc. The internal circuit block diagram is as shown in figure 1. Figure 1 The internal circuit block diagram of AN5265 2.Pin functions and data The AN5265 uses the single row 9-pin package, the pin functions and data are as shown in table 1. Table 1 The pin functions and data of the AN5265 3.Typical application circuit The typical application circuit is as shown in figure 2.
