AMPLIFIER_COOL_DOWN_CIRCUIT_II

Published:2009/6/23 2:37:00 Author:May | From:SeekIC

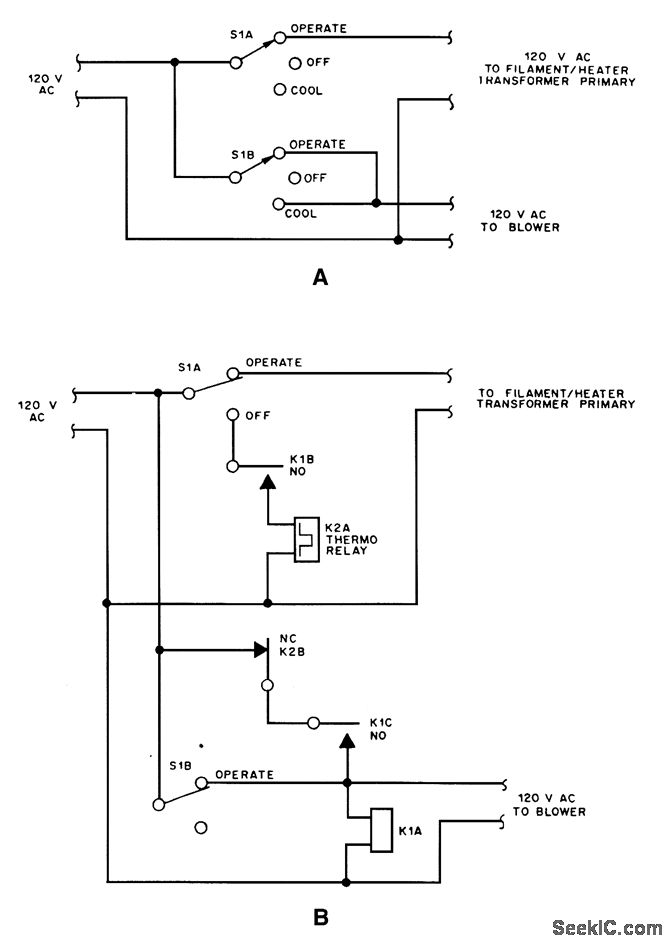

High-power amplifiers used In RE service，usmg vacuum tubes，often benefit from leaving the blower air flow on after removal of filament/heater voltage.
