AD574A and the SCM interface circuits

Published:2011/5/26 2:27:00 Author:Christina | Keyword: SCM, interface | From:SeekIC

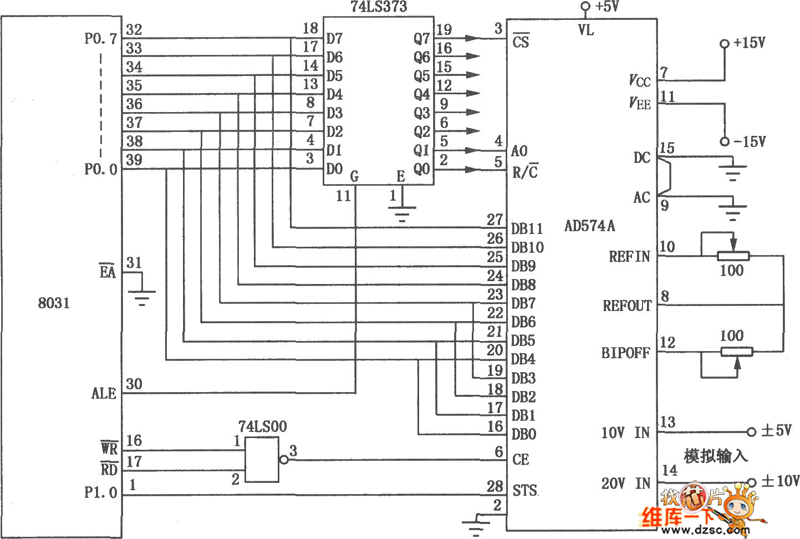

The SCM interface circuit which is composed of the AD574A is as shown. This circuit uses the AD574A type 12-bit gradually comparative type A/D converter, also it has the mixed integration type conversion chip which is composed of two pieces bipolar type circuit, the precision and speed is high, it is one kind of A/D converter that can be used in wide range of applications, also the interface circuit which is composed of it.
