ABSOLUTE_VALUE_AMPLIFIER

Published:2009/6/23 2:07:00 Author:Jessie | From:SeekIC

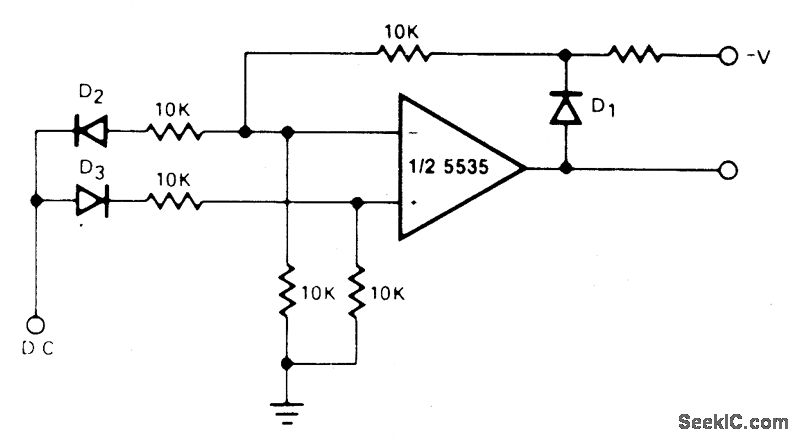

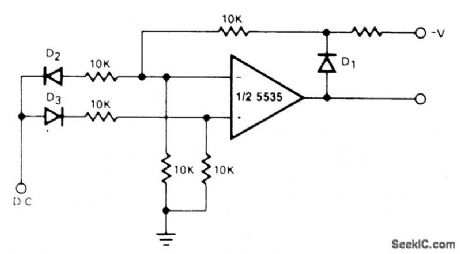

The circuit generates a positive output voltage for either polarity of input. For positive signals, it acts as a noninverting amplifier and effective. The accuracy is poor for input voltages under 1 V, but for less stringernt applications, it can ve effective.
