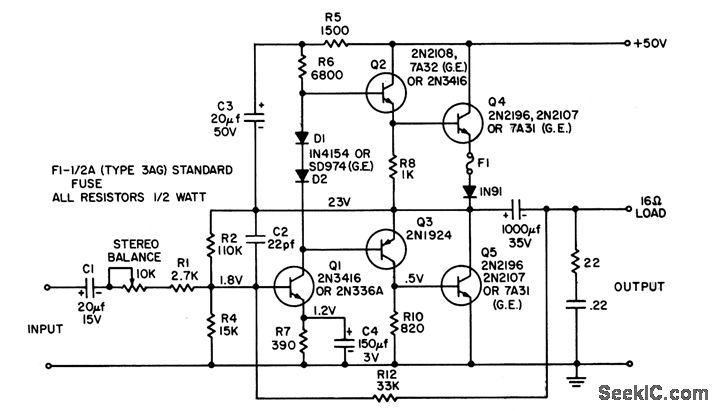

8_W_SILICON_TRANSISTOR_POWER_AMPLIFIER

Published:2009/7/14 22:48:00 Author:Jessie | From:SeekIC

Output impedance is 0.5 ohm, for good speaker damping，Response is down only 3 db at 86 kc.Power response is flat Within 0.33 db from 30 cps to 15 kc at 6 w output.- Transistor Manucal, Seventh Edition, General Electric Co., 1964, p 263.
