8_W_AUDIO_AMPLIFIER

Published:2009/7/9 2:41:00 Author:May | From:SeekIC

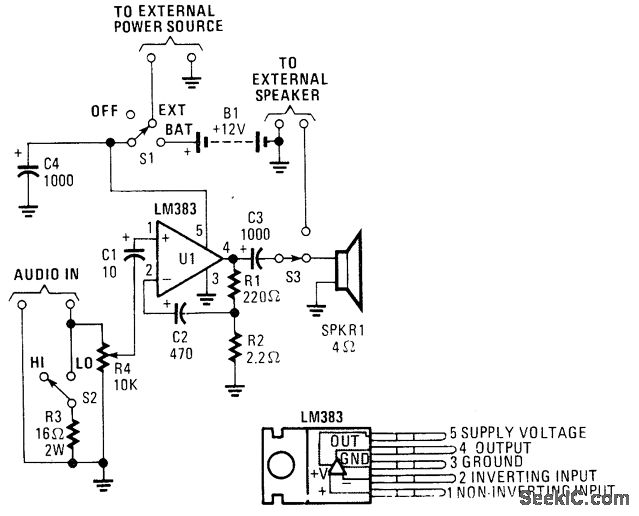

This audio power amp (built around an LM383 8-W, audio power amplifter) can be used to boost an audio signal to a sufficient level so that it can be heard in a high-noise environment. Note that LM383 should be heatsinked.
