80_W_PEP_broadband_linear_amplifier

Published:2009/7/23 22:56:00 Author:Jessie | From:SeekIC

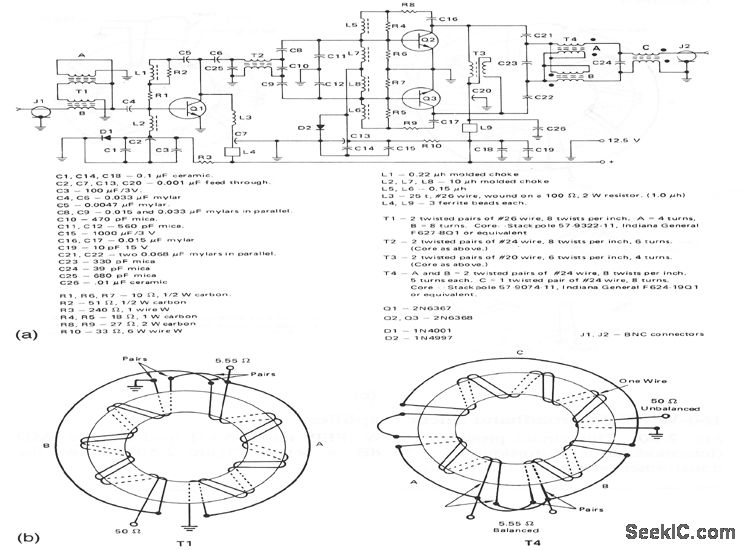

This circuit provides 80-W (PEP)into a 50-Ω load.Figure 2-51B shows the transformer details.
