805 single end power amplifier circuit

Published:2011/10/26 22:11:00 Author:May | Keyword: single end, power amplifier | From:SeekIC

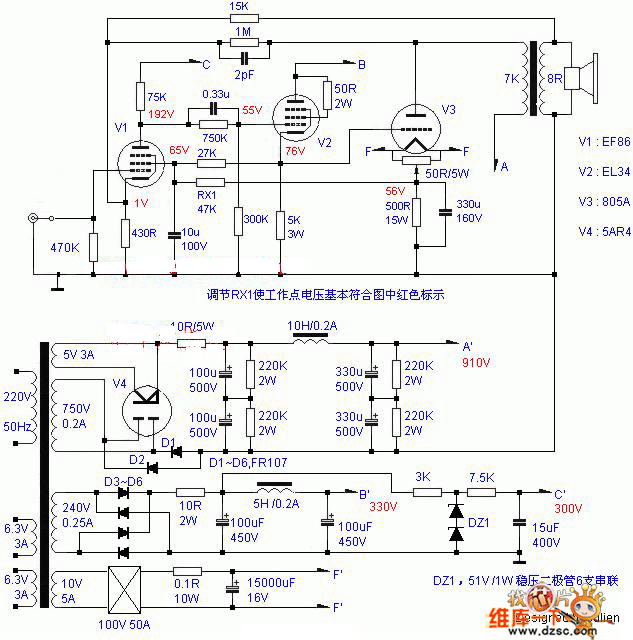

It isthe 805 single end circuit with proper performance. Its debugging is very simple. Push level upraises 805’s cathode potential even though itdoes not add negative voltage supply. And this is equivalent to add push range. The whole adds some loop feedback and it can not cause thetone impaired problem. It needs to take notethat the supply voltage of 805’s filament should bein the range of 10V ±0.2V and the output power is higher than 25W.
