70_MC_NEUTRALIZED

Published:2009/7/16 2:26:00 Author:Jessie | From:SeekIC

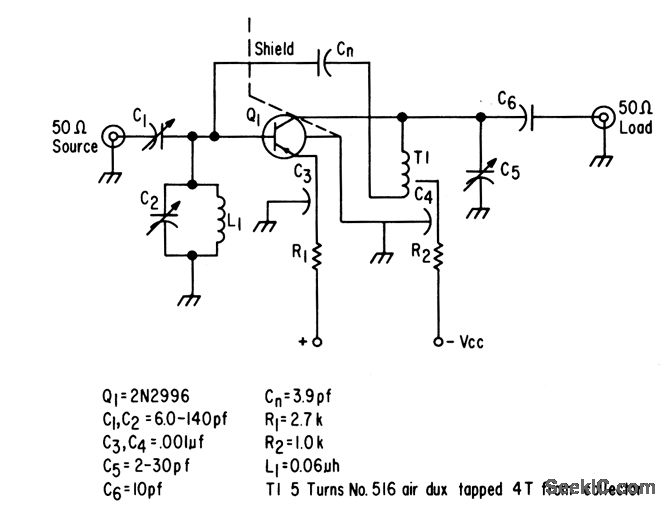

Designed to give maximum power gain in single stage while maintaining good stability. Noise figure is less than 3 db with power gain of 27 db.-Texas Instruments Inc., Solid-Stale Communications, McGraw-Hill, N.Y., 1966, p 313.
