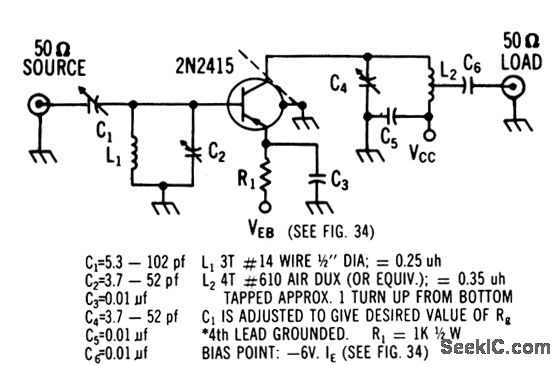

70_MC_LOW_NOISE_I_F

Published:2009/7/16 2:34:00 Author:Jessie | From:SeekIC

Noise figure ranges from 2 to 4 db depending on generator re sistance and emitter current. Power gain is 24 db.-Texas Instruments Inc., Solid. Slate Communications, McGraw-Hill, N.Y., 1966, p 312.
