6z4 Tube amp circuit

Published:2011/8/29 20:56:00 Author:Jessie | Keyword: Tube amp | From:SeekIC

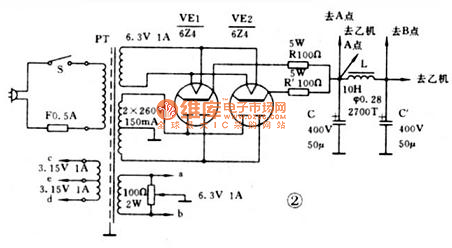

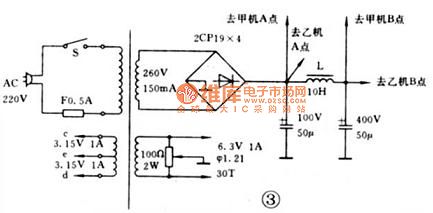

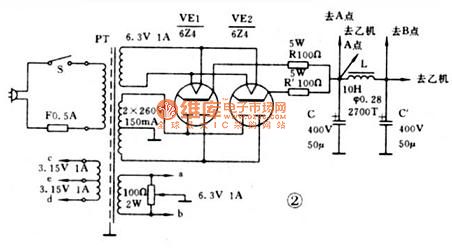

Voltage amplifier tube canreplace 6N1, thenR4 reduces to100kΩ, R10 reduces to50kΩ. 6Z4 can replace power rectifier electronic diode. Because single 6Z4'smaximumDC output current is only 75mA,it should use two tubes connected in parallel. It also can use semiconductor diode to replace it.
