6_m_100_WILNEAR_AMPLIFIER

Published:2009/7/9 1:05:00 Author:May | From:SeekIC

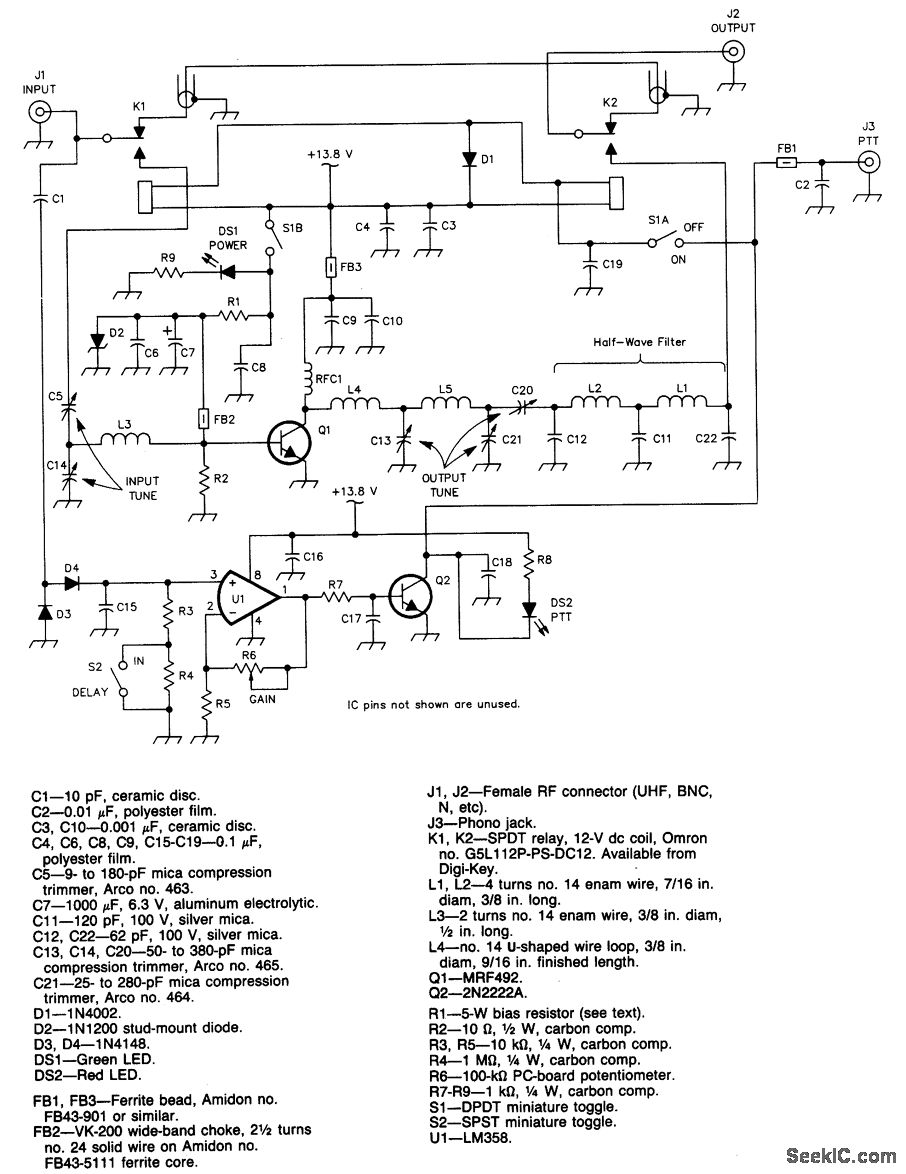

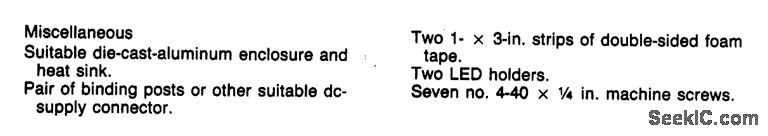

100 W output at 50 MHz is available from this circuit. UI and Q2 form a T-R relay driver, switching the amplifier on when RF input at J1 is sensed. During receive periods, J1 and J2 are directly connected. A 13.8-V supply is required for this amplifier.
