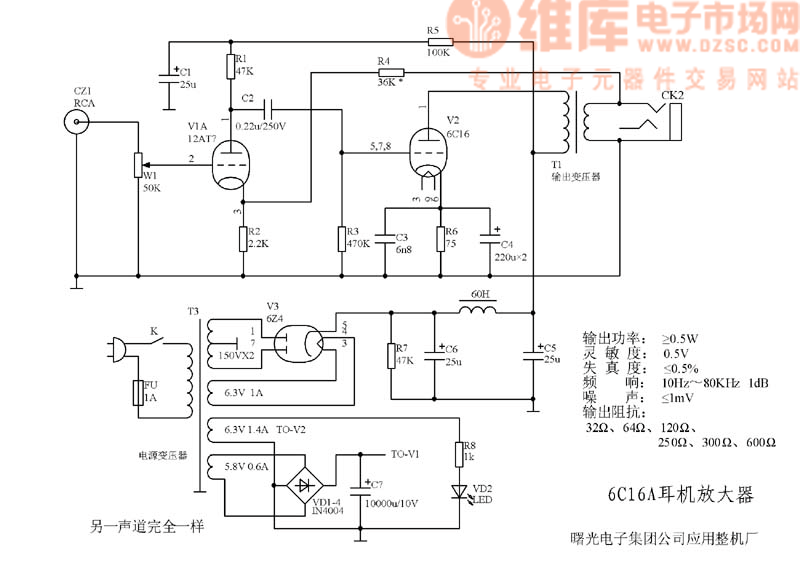

6C16A headphone amplifier circuit diagarm

Published:2011/6/21 5:38:00 Author:Lucas | Keyword: headphone, amplifier | From:SeekIC

Output power: ≥ 0.5w; sensitivity: 0.5V; Distortion: ≤%; Frequency: 15Hz ~ 80KHz 1dB; noise: ≤ 1mV; output impedance: 32,64,120,250,300,600 Ω.
